$333.32
S660-1-1-0-1-0
Alt: S66011010
$384.16
Preset Totalizer/Counter, 120VAC, Standard Input, 12DVC Excitation
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Choose Your Motor Starter Solution
Build your motor starter system with knowledgeable guidance on selecting your components, including starters, contactors, relays, and accessories.
Description
Simpson offers a complete line of counters!
- S660 totalizer counters
- S661 preset rate counters
- S662 batch/dual counter
- S663 rate/totalizer counter
- S664 frequency counter
The front cover is rated NEMA 4X and can easily be programmed from the front panel.
Marshall Wolf Automation is your authorized Simpson Electric distributor!
Specifications
Alternate Part Number
S66011010
Analog/Digital
Analog
Modes
See Spec
Mounting
Panel Mount
Poles
See Spec or N/A
Series
See Specs
Size
Rectangular
Type of Product
Counter
All - Voltage
110/120VAC
Warranty
1 Year
Weight
1
Features Include:
- Type: 6-Digit, 7-Segment, red LED
- Height: 0.56” (14.2mm)
- AC Voltages: 120 or 240VAC, ±10%
- Power Consumption: 3VA
- Current Sinking: 10KΏ 5% Resistor pull-up to (9.0 - 16DCV) ±10%
- Current Sourcing: 5.1KΏ 5% Resistor pull-down to common

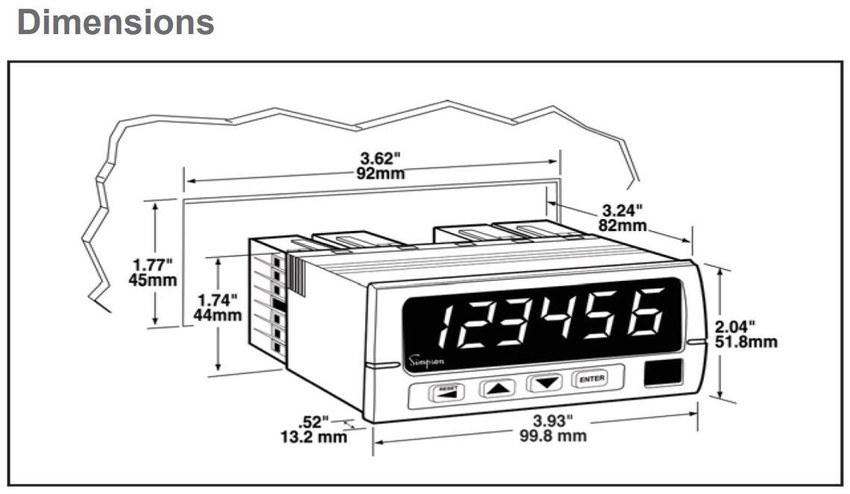

- Panel Cutout: 3.62" x 1.77" (92mm x 45mm)
