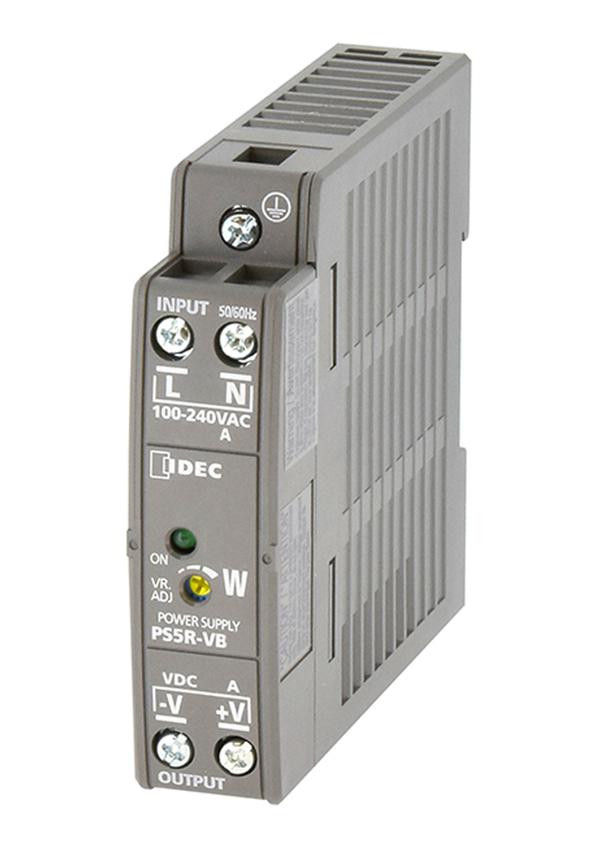

PS5R-VB24
Alt: PS5R-V Series
$50.86
Power Supply, Compact, DIN-Rail Mount, 15W, 24VDC Output, 0.65 Amp, UL508/1310, RoHS, Class 1, Div 2
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The PS5R-V series takes all the best features from the previous generation (PS5R) and improves them!
This high efficiency series includes expanded operating temperature range, a MTBF of up to 900,000 hours plus numerous approvals and certifications.
- Spring up screw terminals, fused inputs and overload protection
- DIN rail or direct surface mountable (6 directions!)
- Universal input of 85 to 264VAC
- No derating
- 5 year warranty!
- All models under 100W are UL1310, Class 2 approved
- Class 1 Division 2 for hazardous locations
- SEMI F47 for use in sensitive equipment applications (208VAC input)
- RoHS compliant
Series Features Include:
- Rated Input Voltage (Single-phase two-wire): 100 to 240V AC (Voltage range: 85 to 264V AC/100 to 370V DC) (Load ≤ 80% at 100-105V DC)
- Wide operating temperature range
- Spring-up terminals accept ring & fork terminals
- Approved for use in Class I Division 2 hazardous locations
- Can be installed in 6 directions
- Overcurrent protection with auto-reset
- Meets SEMI F47 Sag Immunity (208V AC input)
- Protection Rating: IP20 (EN60529)
- RoHS compliant
