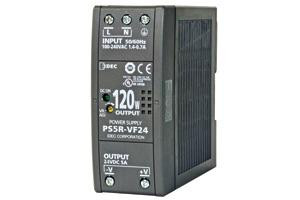

PS5R-VF24

The PS5R-V series takes all the best features from the previous generation (PS5R) and improves them!

This high efficiency series includes expanded operating temperature range, a MTBF of up to 900,000 hours plus numerous approvals and certifications.

• Spring up screw terminals, fused inputs and overload protection
• DIN rail or direct surface mountable (6 directions!)
• Universal input of 85 to 264VAC
• No derating
• 5 year warranty!
• All models under 100W are UL1310, Class 2 approved
• Class 1 Division 2 for hazardous locations
• SEMI F47 for use in sensitive equipment applications (208VAC input)
• RoHS compliant

Series Features Include:

• Rated Input Voltage (Single-phase two-wire): 100 to 240V AC (Voltage range: 85 to 264V AC/100 to 370V DC) (Load ≤ 80% at 100-105V DC)
• Wide operating temperature range
• Spring-up terminals accept ring & fork terminals
• Approved for use in Class I Division 2 hazardous locations
• Can be installed in 6 directions
• Overcurrent protection with auto-reset
• Meets SEMI F47 Sag Immunity (208V AC input)
• Protection Rating: IP20 (EN60529)
• RoHS compliant

Technical Information:

• IDEC PS5R-V Series Switching Power Supplies Technical Data
• IDEC PS5R-V Series Switching Power Supplies Instruction Sheet
• IDEC Power Supplies Catalog
