Available Now!
Available Now!
(3 in stock)
722758
Alt: DRAN120-24B
$127.70

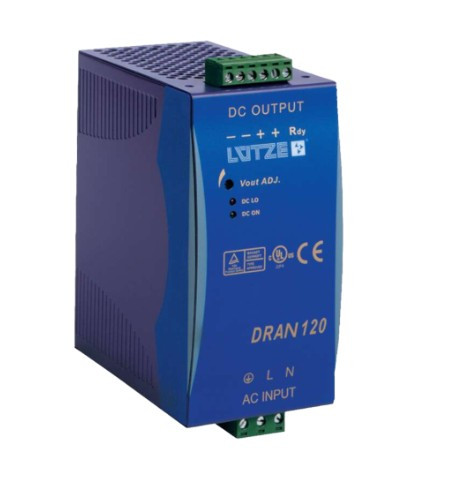

Power Supply, 5A, 24V, 120W
- Weight:
- 2.00 LBS
- Minimum Purchase:
- 1 unit
Description
LUTZE specializes in flexible industrial control and power cables that include LUTZE Silflex®, LUTZE Superflex®, and DRIVEFLEX® VFD cables.
They also offer a complete line of connectivity options that includes cable assemblies, industrial Ethernet connectors and panel pass throughs.
Specifications
Alternate Part Number
DRAN120-24B
Amp Rating
5 Amp
Phase
Single Phase
All - Specific Ratings
IP20 Rated
Options
DIN Rail Mount
All - Voltage
24VDC
Warranty
1 Year
Wattage
120 Watt
Weight
2
Quantity
3
Features Include:
- Rated Voltage: AC 115 / 230 V (auto select)
- Line Frequency: 47 - 63Hz
- Rated Input Current: 1.25 A @ AC 115 V / 0.63 A @ AC 230 V
- Rated Output Current: 5 A
- Mounting: DIN rail mountable TS35 (EN 60715)
- Connection Type: Screw terminal, 0.20 mm2 – 2.5 mm2, plug-in max. 0.56 Nm
- Dimensions (w × h × d): 63.5×142×116 mm
