RL2B-T-D24
Alt: RL Series, Non-Cancellable, No Returns
$10.82

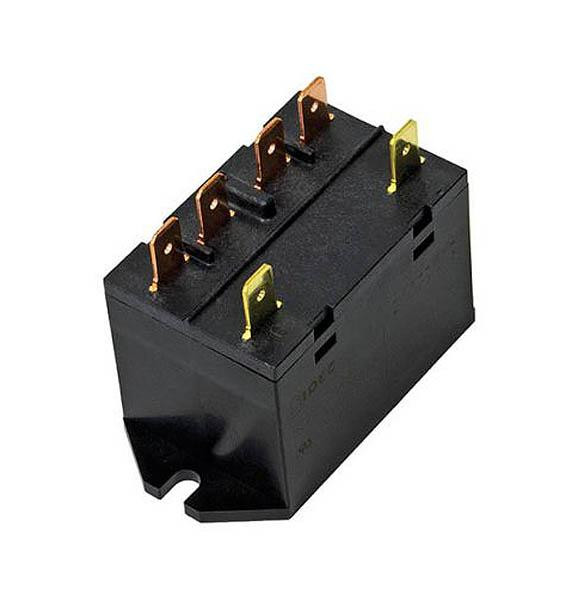

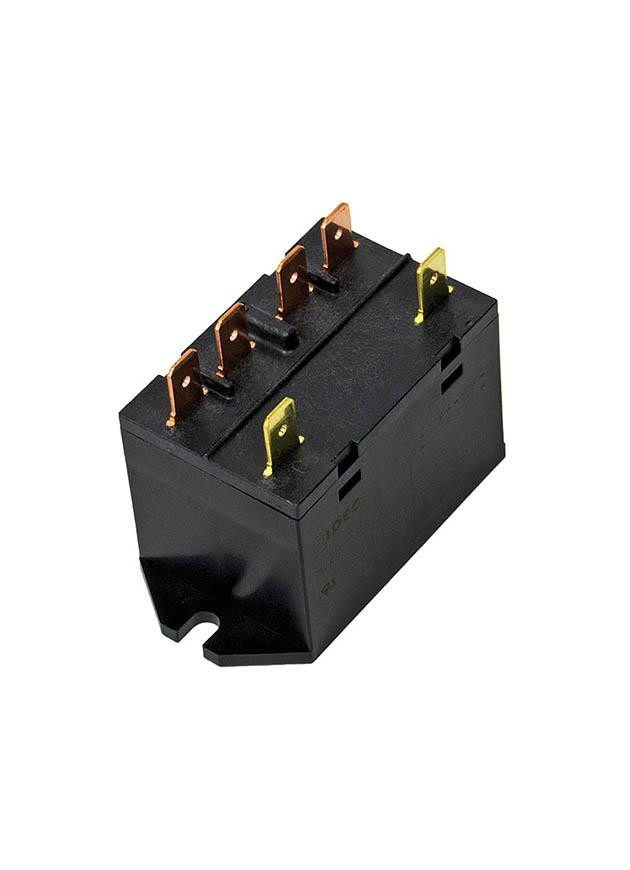

Power Relay, 2 Pole, Quick Connect, 24VDC, Flange Mount, 25A, NCNR
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Description
Power relays keep it easy and simple! Choose from 1 or 2 pole models, 3hp/277V AC rated in a compact package.
Our Idec RL relays are ideal for HVAC, motor controls and any application requiring higher inrush current and inductive kick back. They are available in DIN rail mount (-D- in part number) or flange mout (-T- in part number).
These are unique because when you DIN rail mount our Idec RL series they do not require a socket or adapter!
Screw terminals (RLxN) are best for industrial applications while the quick connect terminals (RLxB) allow faster installation on commercial applications.
Specifications
Amp Rating
25 Amp
Mounting
DIN Rail Mount
Poles
2 Pole
Series
RL Series
Options
DIN Rail Mount
Type of Relay
Power Relay
All - Voltage
24VDC
Warranty
1 Year
Alternate Part Number
RL Series, Non-Cancellable, No Returns
Weight
0.1
- 3HP at 277VAC, 1.5HP at 120VAC
- Single pole rated at 30A, double pole at 25A
- Double Make contacts
- Flange mount or DIN-rail mount with panel mount tabs
- #250 quick-connect or screw terminations
- AC or DC Coil Inputs
- Designed for Motor, Lighting, and Heater Loads
- Up to 7500 VA maximum switching power
- RoHS compliant
