RL2B-T-D12

RL2B-T-D12

Alt: RL Series

$11.32

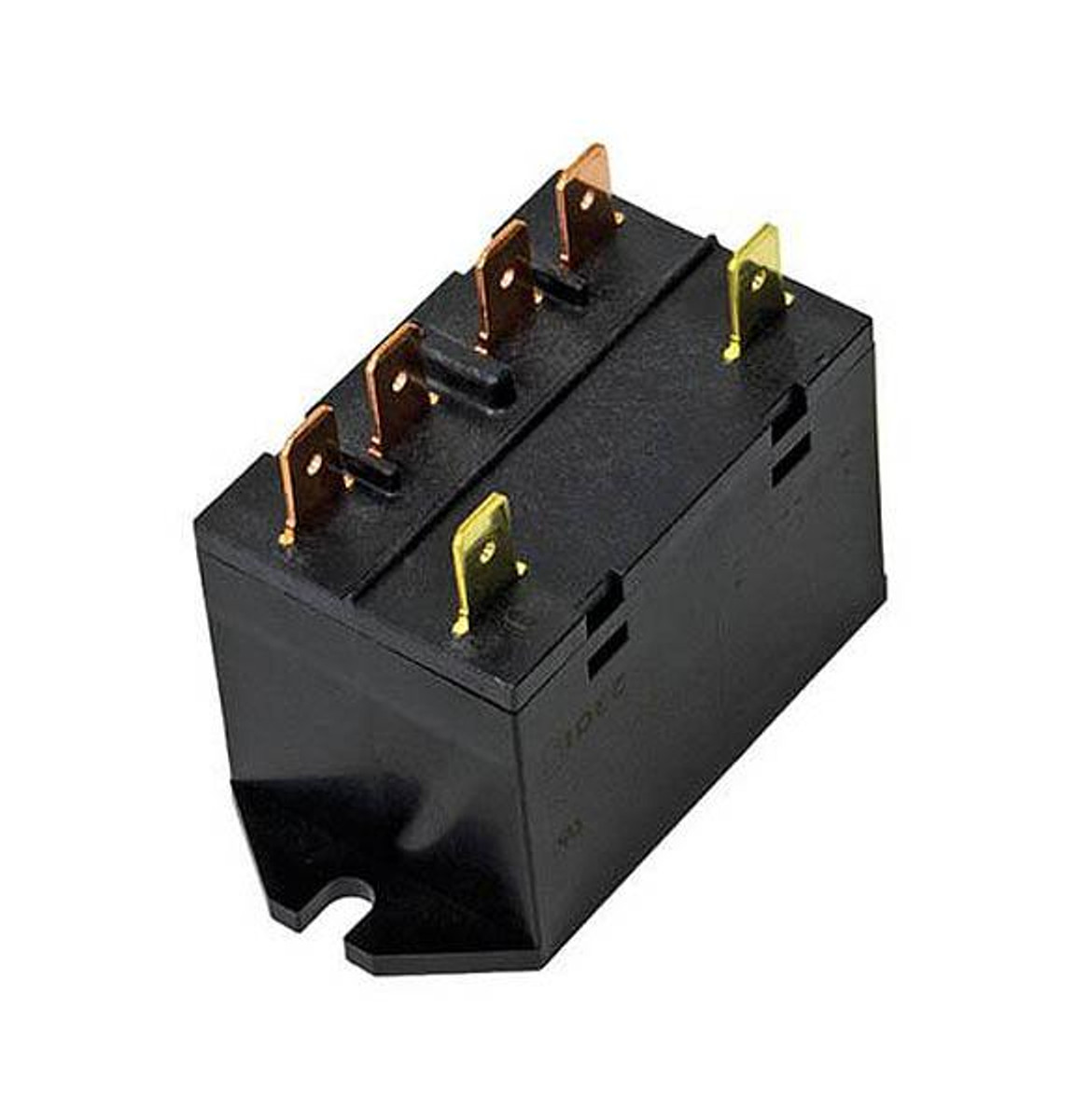

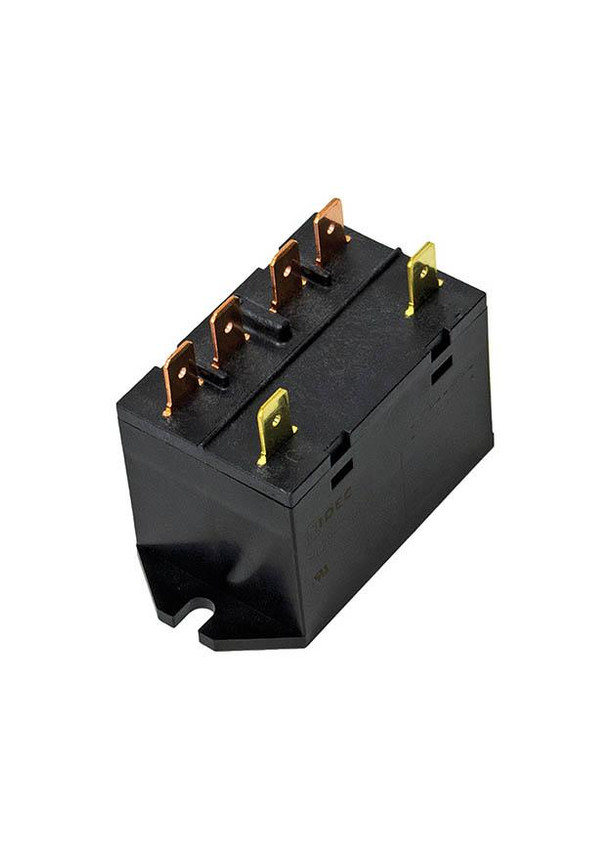

Power Relay, 2 Pole, Quick Connect, 12VDC, Flange Mount, 25A

Weight:
0.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Power relays keep it easy and simple! Choose from 1 or 2 pole models, 3hp/277V AC rated in a compact package.

Our Idec RL relays are ideal for HVAC, motor controls and any application requiring higher inrush current and inductive kick back. They are available in DIN rail mount (-D- in part number) or flange mout (-T- in part number).

These are unique because when you DIN rail mount our Idec RL series they do not require a socket or adapter!

Screw terminals (RLxN) are best for industrial applications while the quick connect terminals (RLxB) allow faster installation on commercial applications.

  • 3HP at 277VAC, 1.5HP at 120VAC
  • Single pole rated at 30A, double pole at 25A
  • Double Make contacts
  • Flange mount or DIN-rail mount with panel mount tabs
  • #250 quick-connect or screw terminations
  • AC or DC Coil Inputs
  • Designed for Motor, Lighting, and Heater Loads
  • Up to 7500 VA maximum switching power
  • RoHS compliant
