38019
$74.84
Power Distribution Block, One Phase, 400 Amp, Single Phase, 600VAC, DIN or Panel Mount, IP20
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Our Altech one phase power distribution blocks are IP20 finger safe and can be DIN rail or panel mounted.
There are no caps to open or remove.
On two parts, 38041 and 38032, accessories can increase the number of outputs with only one input!
Marshall Wolf Automation is your authorized Altech distributor!
Features Include:
- Quick mounting and wiring
- IP20 Finger Safe
- DIN Rail or Panel Mount

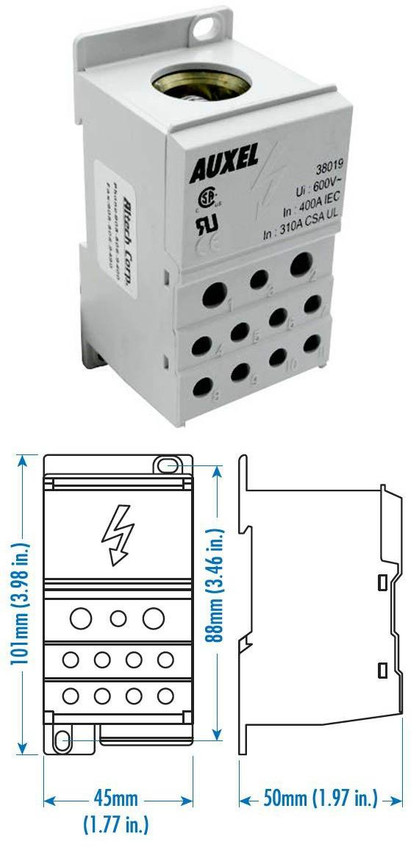

- Blocks fit with other DIN Rail mountable modular devices (height 95mm, depth 44.5mm)
- Accessories increase the number of outputs with only one input (applies only to 38041 and 38032)
- No caps to open or remove
Material
- Housing: Polyamide
- Metal Body: Brass
UL Ratings Displayed (IEC Ratings available in resources)
Current Rating
- 310A
Voltage Rating
- 600V AC
Number of Inputs: 1
- Input Wire Range: 3/0-350kcmil
- Input Torque: 230lb.-in.
- Input Screw Type: Hex 8
Number of Outputs: 11
- Output Wire Range: (2x)14-2 AWG
- Output Torque: 31lb.-in.
- Output Wire Range: (5x)14-6 AWG
- Output Torque: 17.5lb.-in.
- Output Wire Range: (4x)14-8 AWG
- Output Torque: 17.5lb.-in.
- Output Screw Type: Standard screwdriver
