Carlo Gavazzi
CC185SAD100/200
Power-Contactor, 3-Pole, 185A, 100/200VAC/DC, Screw Type, Non-Cancellable, No Returns
$726.75
CC400SAD100/200
Alt: 3P CONT S 100/200 VACDC 2NO2NC
$1,173.85
Power Contactor, 400 Amp (400A), 3 Pole, 100/200VAC/DC, Screw Terminal, 163 x 243 x 198mm
- Weight:
- 20.28 LBS
- Minimum Purchase:
- 1 unit
Description
Power-Contactor, 3-Pole, 400A, 100/200VAC/DC, Screw Type
Features Include:
Continuous Current: 450A
Motor AC Three Phase:
- 220~240VAC = 150HP
- 440~480VAC = 300HP
- 550~600VAC = 300HP
IEC Rating:
- Resistive AC1, 690VAC max: 450A
- Motor AC3:
- 200~240VAC: 125kW 400A
- 380~440VAC: 200kW 400A
- 500~550VAC: 225kW 350A
- 690VAC: 250kW 300A
Coil Voltages
- AC Coil
- VAC 50/60Hz: 300, 400, 500 VAC
- AC/DC Coil:
- VDC: 24, 48, 100/200 VAC/VDC
Basic Dimensions (W x H x D mm):
- 187 x 243 x 205
Accessories:
- Auxiliary Contacts, Standard: 2NO2NC
- Mechanical Interlock: AR-400
Technical Information:
Learn more about Contactors, Starters & Overload Relays here!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Carlo Gavazzi
CC225SAD100/200
Power-Contactor, 3-Pole, 225A, 100/200VAC/DC, Screw Type, Non-Cancellable, No Returns
$807.50
Carlo Gavazzi
CC330SAD100/200
Power-Contactor, 3-Pole, 330A, 100/200VAC/DC, Screw Type, Non-Cancellable, No Returns
$1,049.75
Altech Corp.
200-403-91
Enclosure, Polycarbonate, Gray Cover, 84 x 82 x 55mm (3.31 x 3.23 x 2.17"), Standard Screws, IP67, Type TGPC88-6
$19.50

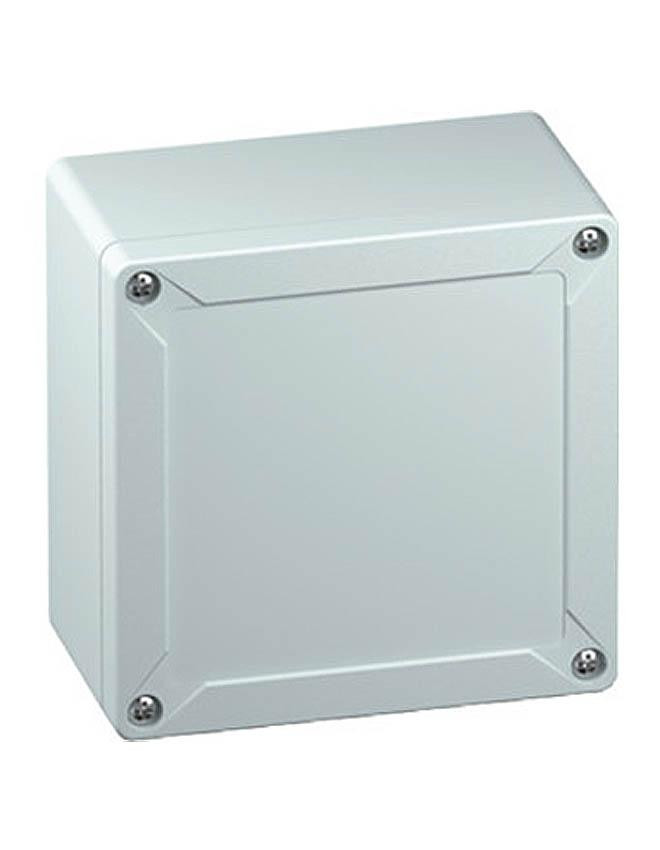

Altech Corp.
