Carlo Gavazzi
CC400SAD100/200
Power Contactor, 400 Amp (400A), 3 Pole, 100/200VAC/DC, Screw Terminal, 163 x 243 x 198mm
$1,173.85

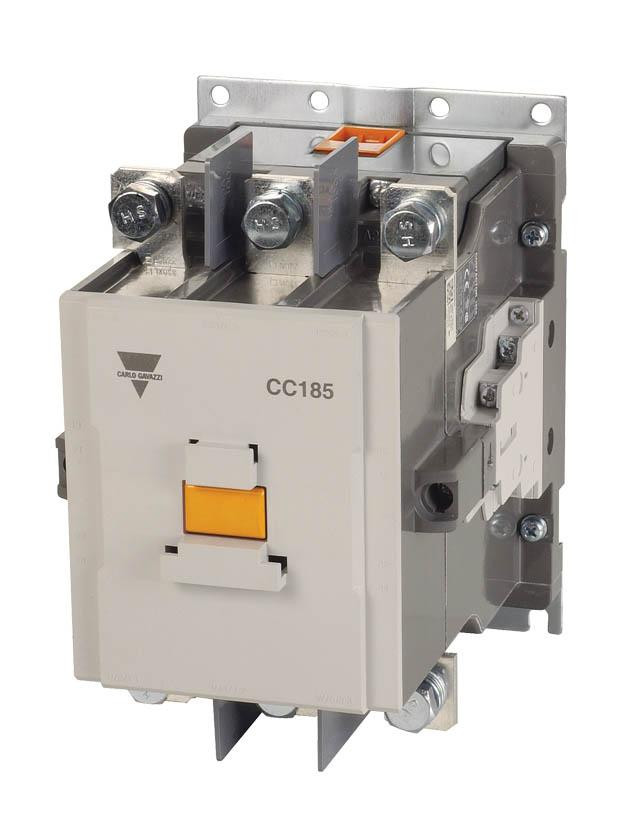

CC185SAD100/200
Alt: Non-Cancellable, No Returns
$726.75
Power-Contactor, 3-Pole, 185A, 100/200VAC/DC, Screw Type, Non-Cancellable, No Returns
- Weight:
- 12.00 LBS
- Minimum Purchase:
- 1 unit
Description
Power-Contactor, 3-Pole, 185A, 100/200VAC/DC, Screw Type
Features Include:
Continuous Current: 230A
Motor AC Single Phase:
- 110~120VAC = 15HP
- 220~240VAC = 30HP
Motor AC Three Phase:
- 220~240VAC = 60HP
- 440~480VAC = 125HP
- 550~600VAC = 125HP
IEC Rating:
- Resistive AC1, 690VAC max: 230A
- Motor AC3:
- 200~240VAC: 55kW 185A
- 380~440VAC: 90kW 185A
- 500~550VAC: 110kW 180A
- 690VAC: 110kW 120A
Coil Voltages
- AC Coil
- VAC 50/60Hz: 300, 400, 500 VAC
- AC/DC Coil:
- VDC: 24, 48, 100/200 VAC/VDC
Basic Dimensions (W x H x D mm):
- 162 x 203 x 185
Accessories:
- Auxiliary Contacts, Standard: 2NO2NC
- Mechanical Interlock: AR-400
Technical Information:
