199290-0027
Alt: WCS3B-LS311D
$3,229.26

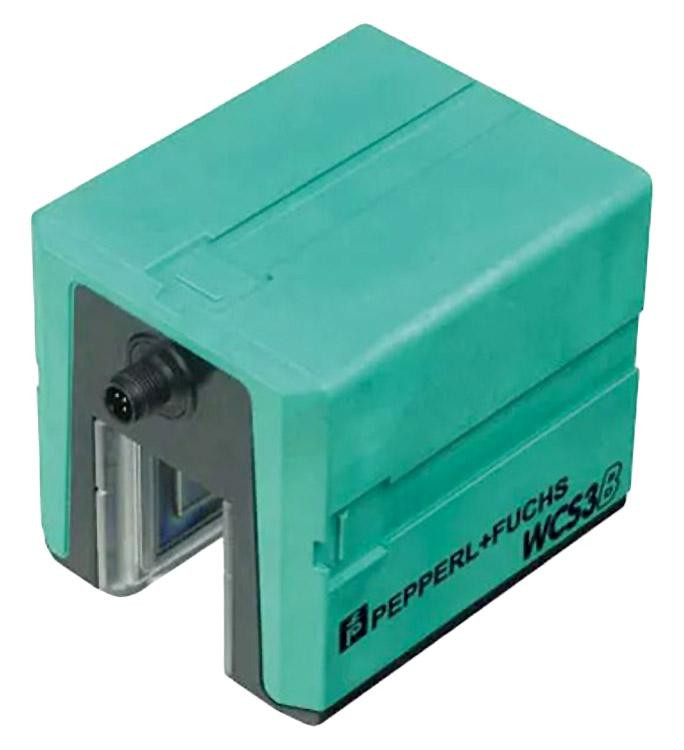

Read Head, PosiTrack System, Gray Code SSI Interface, Non-Contact, Absolute Position Encoder, Automatic Detection of Dirt Accumulation, Integrated Display Mode, Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 1.50 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Specifications
Alternate Part Number
WCS3B-LS311D
Type of Product
See Spec
Quantity
4
Warranty
18 Months
Weight
1.5
Features Include:
- SSI interface
- Non-contact, absolute position encoder
- Automatic detection of dirt accumulation
- Integrated display module
- Operating voltage: 10 - 30 V DC
- Power consumption: 2 VA
- Passage speed: ≤ 12.5 m/s
- Measuring range: max. 314.5 m
- Free tolerances to code rail horizontal: 31 mm ( ± 15.5 mm ), vertical: 28 mm ( ± 14 mm )
- Resolution: ± 0.4 mm (1,250 positions/m)
- Operation indicator: LED green: power on
- Data flow indicator: LED yellow: data communication active
- Error indicator: LED red, flashing: read head outside of code rail, solid on: internal diagnostic test failed
- Display: Display module, 6-digit adaptable to installation position
- Connection type: 8-pin, M12 x 1 connector
- Degree of protection: IP54
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Pfannenberg
18182000027

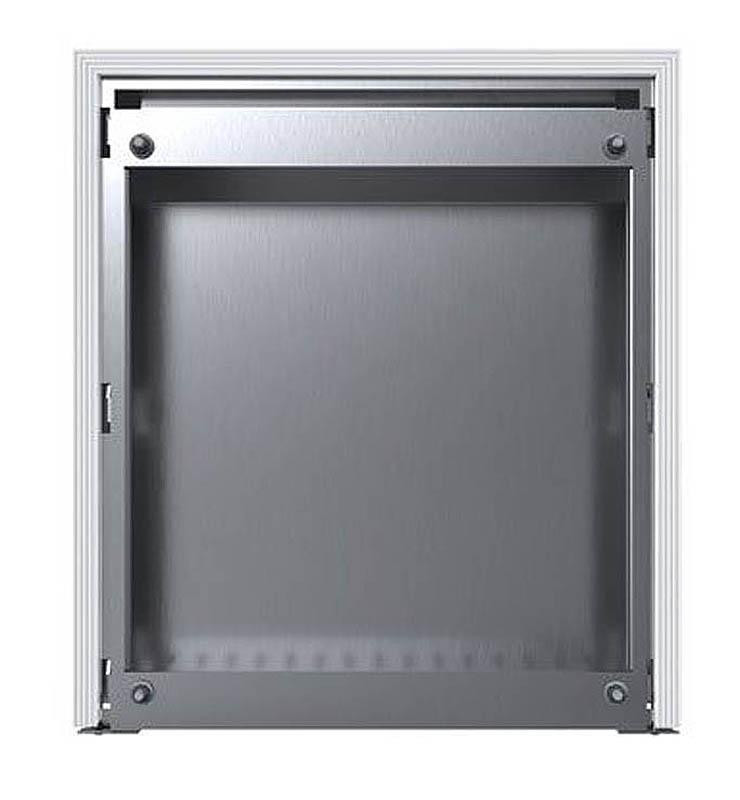

Sanitary Hood, SS NEMA 4/4X (White FDA Gasket) 276x322x102mm, Use w/PF 3XOOO & PFA 30000
