$35.44
ZADM 034P240.6921
Alt: 10159114
$2,199.00

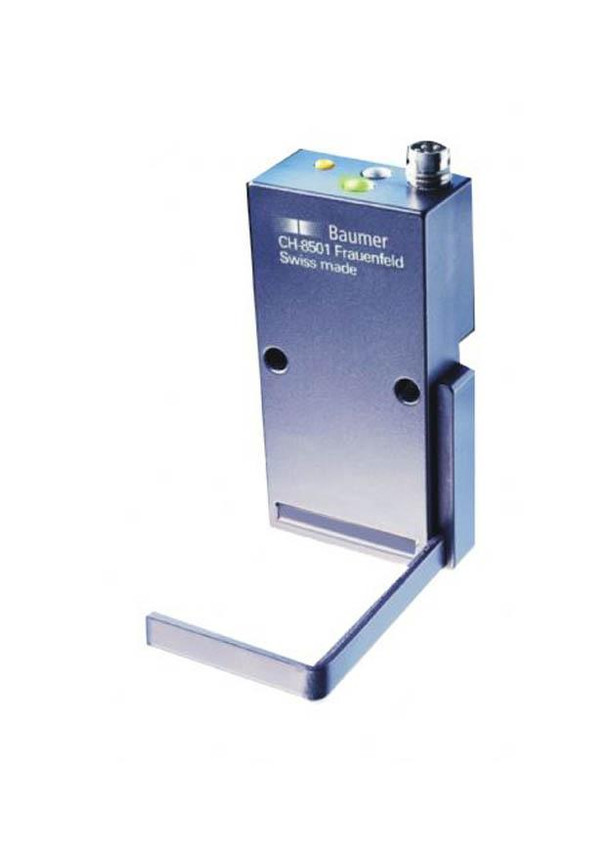

PosCon Line Sensor
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
PosCon Line Sensor
Features Include:
- Type: Switchable
- Measuring field size: 24 mm
- Measuring distance (to object): < 40 mm
- Measuring frequency: 4000 Hz
- Resolution: < 0,1 mm
- Smallest object recognizable: 0.5 mm
- Power on indication: LED green
- Light source: Pulsed infrared diode
- Wave length: 880 nm
- Adjustment: Teach-in
- Response time: < 0.25 ms
- Output pulse length: 10 ms
- Voltage supply range +Vs: 12 - 28 VDC
- Current consumption max. (no load): 120 mA
- Output circuit: PNP
- Output function: Light / dark operate
- Output current: < 100 mA
- Voltage drop Vd: < 2.2 VDC
- Reverse polarity protection: Yes, Vs to GND
- Width / diameter: 34 mm
- Type: Rectangular, front view
- Housing material: Aluminum
- Front (optics): Glass
- Connection types: Connector M8 4 pin
Technical Information:
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$78.43
Baumer
ESG 32AH0500G

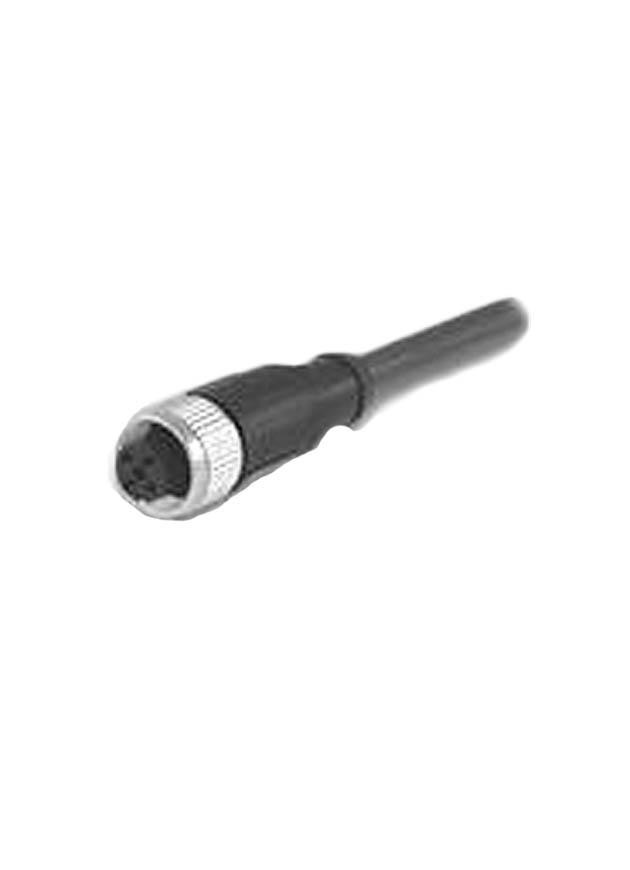

Cable, 5m, M8 4-wire, Straight, Shielded, Self-Locking Cap Nut, PUR Halogen-Free
$32.59
$28.87
$23.17
