Product image is representative only, please verify specifications.
PMC01D230
Alt: Minimum Order 5 Pieces, Price per Piece
$192.80
Analog Timer, 7 Function, 2xSPDT, 0.1s-100h, 230VAC, Plug-in
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 5 units
Description
Analog Timer, 7 Function, 2xSPDT, 0.1s-100h, 230VAC, Plug-in
Specifications
Alternate Part Number
Minimum Order 5 Pieces, Price per Piece
Analog/Digital
Analog
Modes
7 Mode
Mounting
Plug-in
Poles
SPDT
Series
See Specs
Size
35mm
Type of Product
Timer
All - Voltage
220/240VAC
Warranty
1 Year
Weight
1
Features Include:
- Time range 0.1 s to 100 h
- Knob selection of time range
- Knob adjustable time setting
- External adjustable time setting available
- Repeatability: ≤ 0.2%
- DC supply for PNP/NPN and Namur sensors
- Output: 2x 8 A SPDT relay
- Rated Insulation Voltage (Output): 250 VAC (RMS)
- For mounting on DIN-rail in accordance with DIN/EN 50 022 or Plug-in

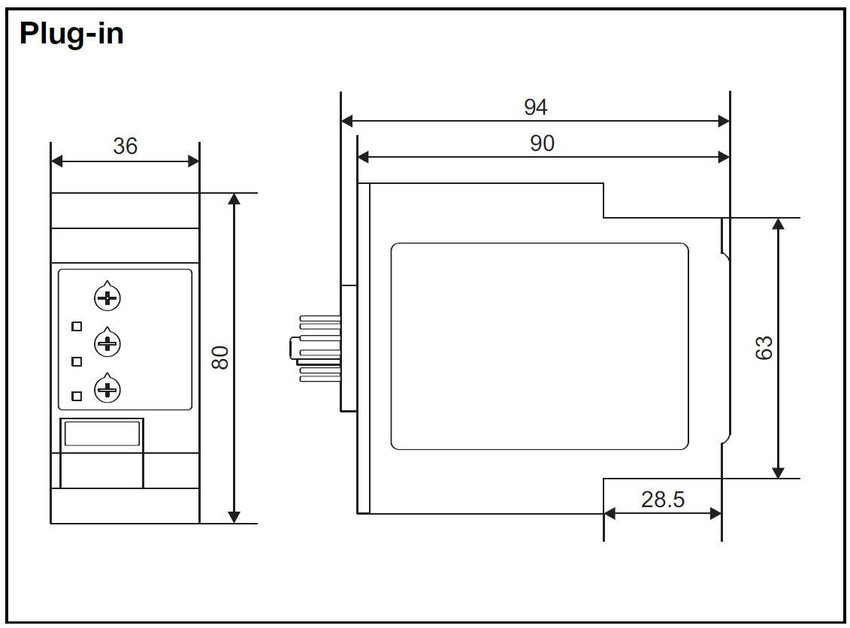

- Dimensions: 36 x 80 x 94 mm
- LED indication for relay status and power supply ON
7 knob selectable functions:
- Op - Delay on operate, manual start
- Oa - Delay on operate, automatic and manual start
- In - Interval, manual start
- Ia - Interval, automatic and manual start
- Nr - Interval with no time reset, manual start
- Na - Interval with no time reset, automatic and manual start
- Dr - Delay on release
