TECO-Westinghouse manufacturers motors, variable frequency drives and soft starters.
In 1995 TECO acquired all Westinghouse Electric Corp. shares and in 1997 the name was officially changed to TECO-Westinghouse Motor Company (TWMC). They are headquartered in Round Rock, Texas.
After acquiring Motovario, TECO also has a line of gearmotors.
Features Include:
Voltage: 230/460
Output Range: 5 HP
RPM Rated: 3600
Frame Size: 182T
Time Duty Continuous, Service Factor: 1.0 (S1)
Protection Enclosure Totally Enclosed: (IP55)
Mounting Horizontal Foot Mounting: F-1 (IM 1001)
Cooling Method: Frame-Surface Cooled with a Fan (IC 411)
Power Condition: Voltage: ±10%, Frequency: ±5%, and ±10% of Combined Voltage and Frequency, but frequency variation does not exceed ±5%
Starting Method: Controlled by Permanent Magnet Synchronous Motor Inverter
Direction of Rotation: Bi-Directional
Drive Method: Direct Coupling Service
Placement Recommendation: Shadow, Non-Hazardous
Ambient Temperature: -20˚C~40˚C
Relative Humidity: Less than 90% RH (Non-Condensation)
Altitude: Less than 3,300 ft
Frame: High Grade Cast Iron with 2 Drain Holes at Bottom
End Bracket: High Grade Cast Iron
External Fan: Plastic
Fan Cover: Pressed Steel
Shaft: Carbon Steel, Cylindrical Single Extension with Keyseat and Key
Bearing: Grease Pre-Packed, Shielded Rolling Bearings
Lubricant: Mineral Oil, Li-Base Grease (MULTEMP SRL)
Shaft: Flinger V-Ring on Both Ends
Terminal Box: Pressed Steel, Larger Size, Can be Set 90° Apart, with Clearance
Hole: Cable Entrance, F-1 & F-2 Interchangeable
Stator Insulation: Class F Insulation System
Rotor Structure: Permanent Magnet NdFeB
Painting System: Phenolic Rust Proof Base Plus Lacquer Surface Finished

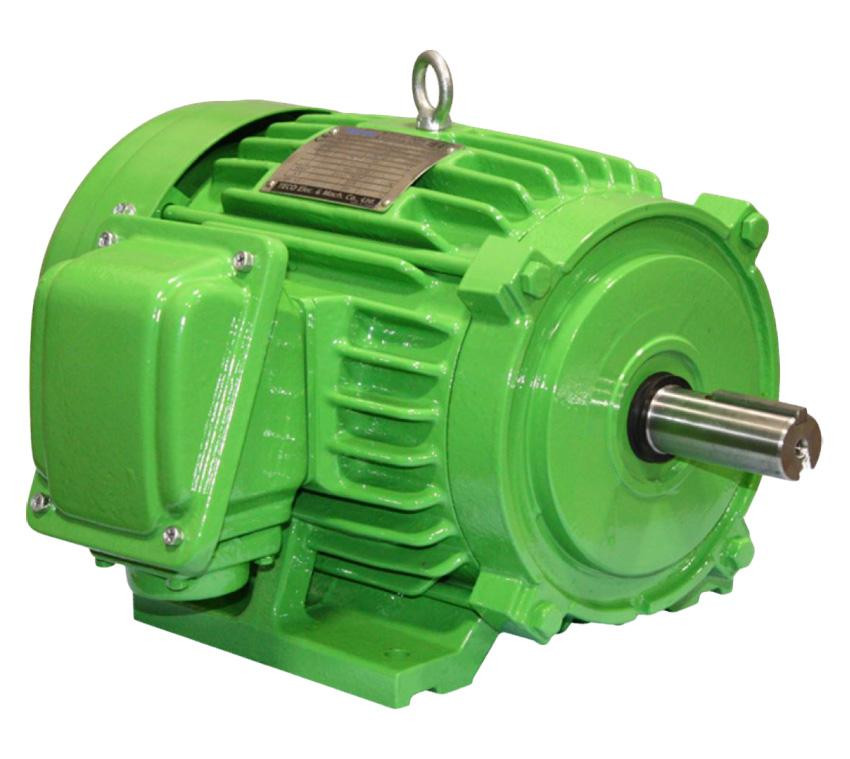

Color: Green (Munsell 10GY 5/12)
Temperature: Rise Not to Exceed 80˚C for 1.0 Service Factor by Resistance Method
