Saginaw
SCE-ASPB-09
Oil Tight Hole Seal (Plug), 1.75" (44mm) Diameter x 0.5", Maximum Hole Size: 1.25" (31.75mm) Diameter, Steel - ANSI-61 Gray, NEMA/UL 3R, 4, 4X, 12, IP56
$5.75
SCE-ASPB-SS
$25.97
Oil Tight Hole Seal (Plug), 1.75" (44mm) Diameter x 0.5", Maximum Hole Size: 0.875" (22mm) Diameter, Stainless Steel, NEMA/UL 3R, 4, 4X, 12, IP56
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw offers just about every type of enclosure; steel, stainless steel, non-metallic and custom! All NEMA ratings and styles are available as well as a complete line of accessories.
Saginaw enclosures have been designed and manufactured in Michigan since 1963.
Features Include:
- Extra push button holes can be sealed against dust, dirt, oil, and water with a SCE hole seal. Seals will cover most pushbutton hole sizes.

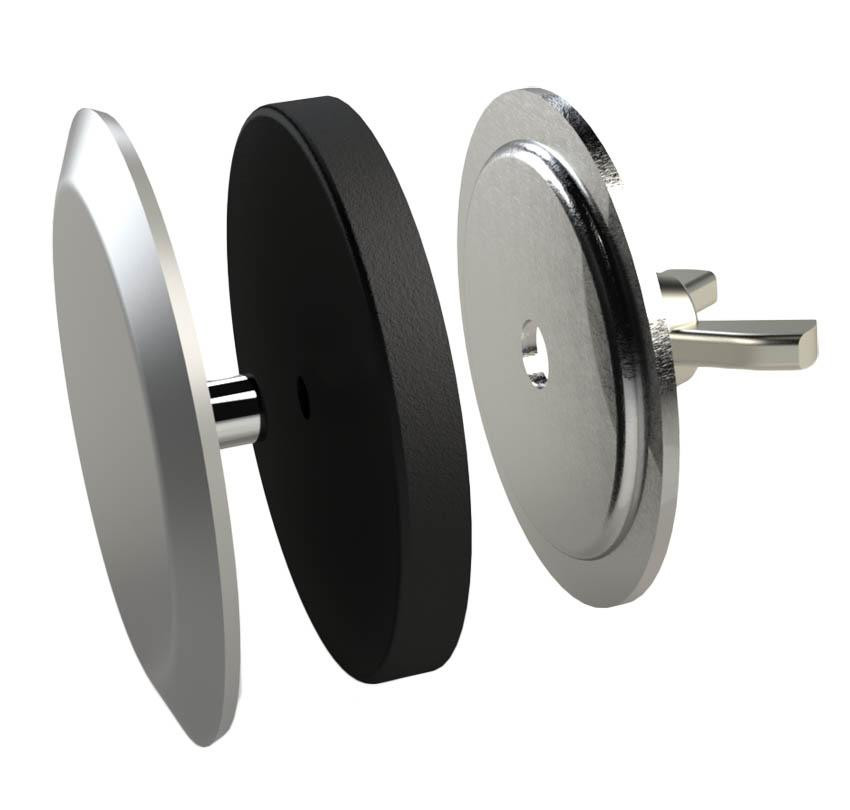

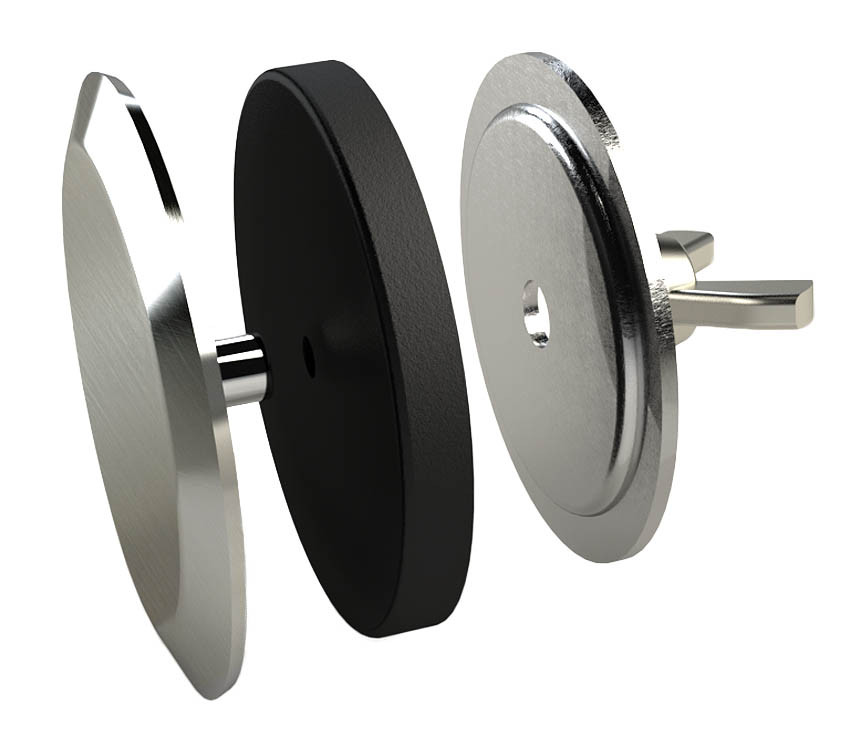

- Hole seals come with oil-resistant gasket, #10-32 x 3/8" stud, zinc plated wing nut, and plated steel back plate.
- Available in stainless steel or powder coated finish.
- NEMA Type 3R, 4, 4X & 12
- UL Recognized Type 3R, 4, 4X & 12
- IEC 60529
- IP 56
- Height: 1.75"
- Width: 1.75"
- Depth: 0.50"
- Pushbutton Size: 30mm
- Max. Hole Size: 1.25 Dia. (31.75mm)
Technical Information:
Read more about Enclosures here!
Accessories
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Saginaw
SCE-ASPB-05
Oil Tight Hole Seal (Plug), 1.75" (44mm) Diameter x 0.5", Maximum Hole Size: 1.25" (31.75mm) Diameter, Steel - SCE-05 White, NEMA/UL 3R, 4, 4X, 12, IP56
$5.75
Saginaw
SCE-ASPB-RAL7035
Oil Tight Hole Seal (Plug), 1.75" (44mm) Diameter x 0.5", Maximum Hole Size: 1.25" (31.75mm) Diameter, Steel - RAL 7035 Gray, NEMA/UL 3R, 4, 4X, 12, IP56
$6.97
Saginaw
SCE-ASPB-09-25
Oil Tight Hole Seal (Plug), 1.75" (44mm) Diameter x 0.5", Maximum Hole Size: 1.25" (31.75mm) Diameter, Steel - ANSI-61 Gray, NEMA/UL 3R, 4, 4X, 12, IP56, Bulk Pack of 25 Pieces
$141.51
Saginaw
SCE-ASPBG-SS
Oil Tight Hole Seal (Plug), 1.22" (31mm) Diameter x 0.5", Maximum Hole Size: 0.875" (22mm) Diameter, Stainless Steel, NEMA/UL 3R, 4, 4X, 12, IP56
$24.28
Saginaw
SCE-ASPBG-09
Oil Tight Hole Seal (Plug), 1.22" (31mm) Diameter x 0.5", Maximum Hole Size: 0.875" (22mm) Diameter, Steel - ANSI-61 Gray, NEMA/UL 3R, 4, 4X, 12, IP56
$4.93
Saginaw
SCE-ASPBG-09-25
Oil Tight Hole Seal (Plug), 1.22" (31mm) Diameter x 0.5", Maximum Hole Size: 0.875" (22mm) Diameter, Steel - ANSI-61 Gray, NEMA/UL 3R, 4, 4X, 12, IP56, Bulk Pack of 25 Pieces
$100.13
Saginaw
SCE-ASPBG-05
Oil Tight Hole Seal (Plug), 1.22" (31mm) Diameter x 0.5", Maximum Hole Size: 0.875" (22mm) Diameter, Steel - SCE-05 White, NEMA/UL 3R, 4, 4X, 12, IP56
$4.22
