$6.48
PLDLF-501-RYGBC
Alt: PLD Series
$119.16

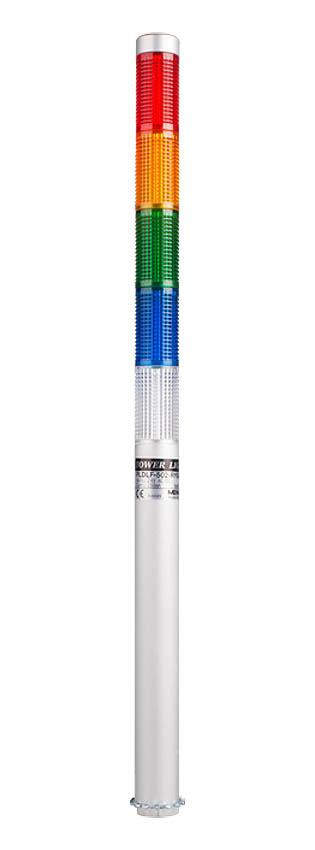

Light Tower, Slim, Ø25mm, Red/Yellow/Green/Blue/Clear, 12VAC/DC, LED, 200mm Pole, Steady/Flash, Direct Mount
- Weight:
- 1.25 LBS
- Minimum Purchase:
- 1 unit
Description
The PLD series is a 25mm LED light tower with an aluminum body. This series has a built-in direct mounting pole installed and lead wire connection. Available in steady or steady/flashing (F), this series is available in 1 to 5 lights in either 12VAC/DC (01) or 24VAC/DC (02). A -W on the end of the part number means the lenses are clear until the light is activated.
Specifications
All - Approvals
CE, RoHS Compliant
Color
R/Y/G/B/C
Light Tower Body Color
Silver/Chrome
Diameter
25mm
Light Tower Mounting
Direct/Surface Mount
Light Tower Number of Stacks
5 Light Stack
Light Tower Options
Continuous, LED
All - Specific Ratings
See Spec
Series
PLD Series
All - Voltage
12V AC/DC
Warranty
3 Years
Alternate Part Number
PLD Series
Weight
1.25
Features Include:
- Operation/Function: Steady/Flashing
- Material: Body: Aluminum, Lid: ABS, Lens: PC, Fixing bolt: Aluminum, Lock nut: steel
- Flash Rate: Approx. 80 ± 5 flashes/min.
- Ambient Temperature: -15 ~ 40 °C
- Storage Temperature: -20 ~ 70°C
- Vibration: 3mm at 10~55Hz
- Well suited for small device applications
- Long LED life and reliable operation
- Prism-cut lenses for even light distribution
- Direct mounting pole installed
- Lead wire connection
