Kacon
KPL-BZIG-12V

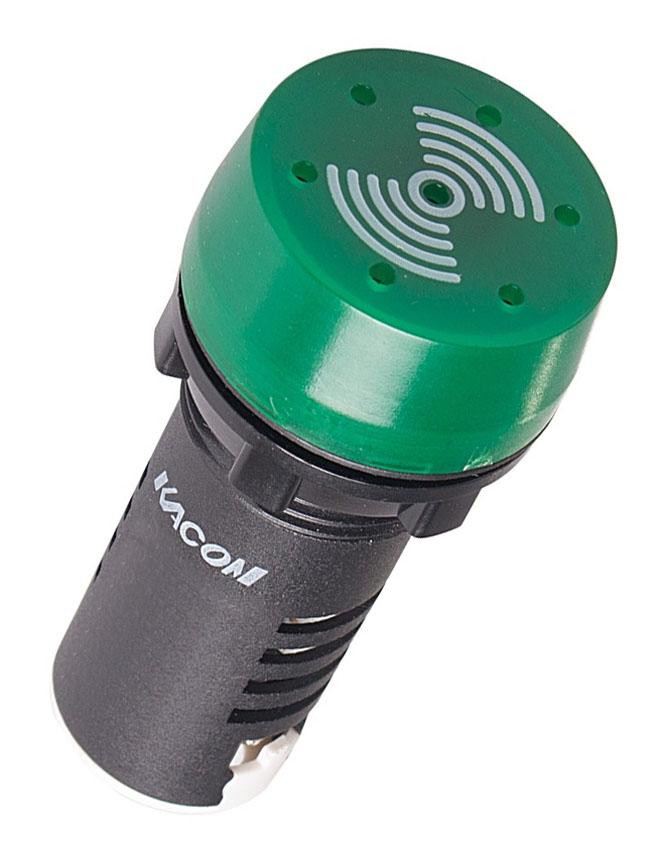

Pilot Light, Ø22mm, w/Buzzer, Green LED, 12VAC/DC, Intermittent Sound, 80dB, Panel Mount
$6.05
KPL-BZIG-24V
Alt: KPL Series
$6.05
Pilot Light, Ø22mm, w/Buzzer, Green LED, 24VAC/DC, Intermittent Sound, 80dB, Panel Mount
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Looking for a low cost LED indicator light with a bright chrome finish? Here it is!

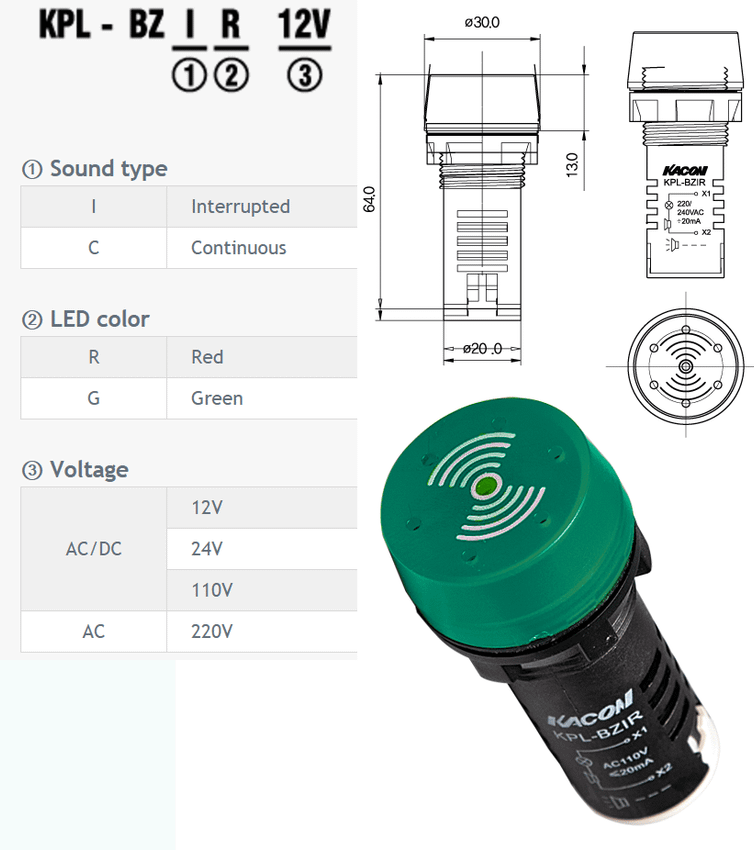

This series offers a bright LED light that is available in five colors; red, green, yellow, blue and white. You can also choose from three bezel styles; flat, round and protruding. Please see the spec sheet for more information.
Features Include:
- Power consumption: 20mA
- Insulation resistance: 100mΩ at 500VDC
- Lamp life: 50,000 hrs
- Type of sounds: Interrupted/Continued
- Volume: 80 phone (dB) minimum
- Weight: Approx. 24g
- Ambient temperature: -25°C~ +55°C
- Terminal bolt driving torque: 0.8N • m (8.16kgf • cm)
Need More Information?
Accessories
Available Now!
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Kacon
KPL-BZIG-110V
Pilot Light, Ø22mm, w/Buzzer, Green, LED, 110VAC, Intermittent Sound, 80dB, Panel Mount
$6.05
Kacon
KPL-BZIG-220V
Pilot Light, Ø22mm, w/Buzzer, Green LED, 220VAC, Intermittent Sound, 80dB, Panel Mount
$6.05
Kacon
KPL-BZCG-24V
Pilot Light, Ø22mm, w/Buzzer, Green LED, 24VAC/DC, Continuous Sound, 80dB, Panel Mount
$6.05
Kacon
KPL-BZCR-24V
Pilot Light, Ø22mm, w/Buzzer, Red LED, 24VAC/DC, Continuous Sound, 80dB, Panel Mount
$6.05
Kacon
KPL-BZIR-24V
Pilot Light, Ø22mm, w/Buzzer, Red LED, 24VAC/DC, Intermittent Sound, 80dB, Panel Mount
$6.05
