$11.10
3PLBR4L-024
$11.10

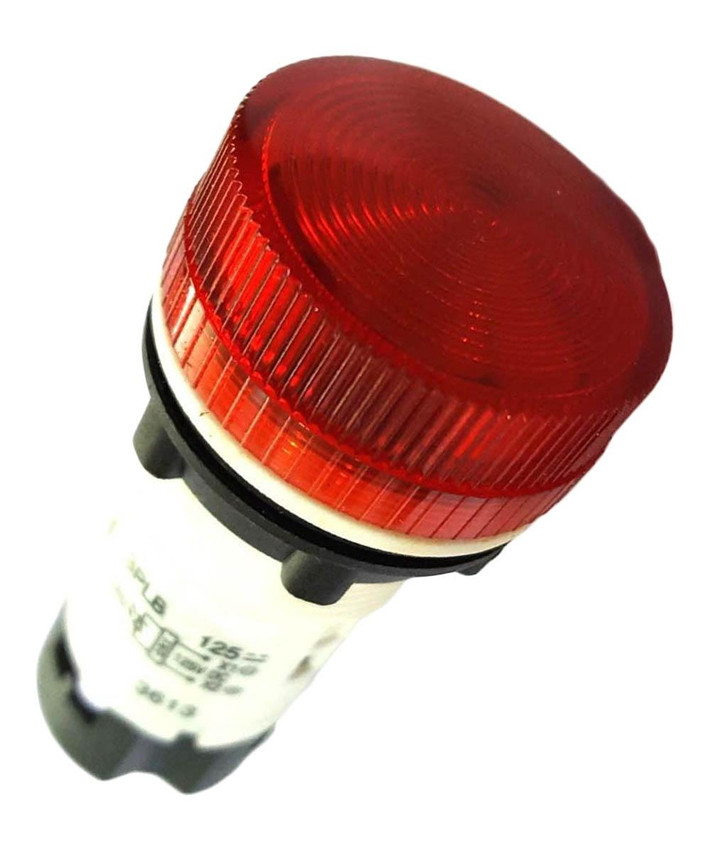

Pilot Light, 22mm, 24VAC/DC, Red, Integral LED
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pilot Light, 22mm, 24VAC/DC, 22mm, Red, Integral LED
Features Include:
Temperature Range
- -25° to +70°C (-13 to +158°F)
Contact Material
- Phosphor bronze for LED, PCB contact brass (tin plated)
Corrosion Protection
- All metallic parts are electroplated for corrosion protection
Terminal Torque
- 0.5 Nm (4.5 lbs. / in.)
Rating
- Rated 6V AC/DC to 240V AC and 220V DC, 2W max. (Integral LEDs)
