50127034
Alt: LE46C/4P, Non-Cancellable / No Returns
$171.00

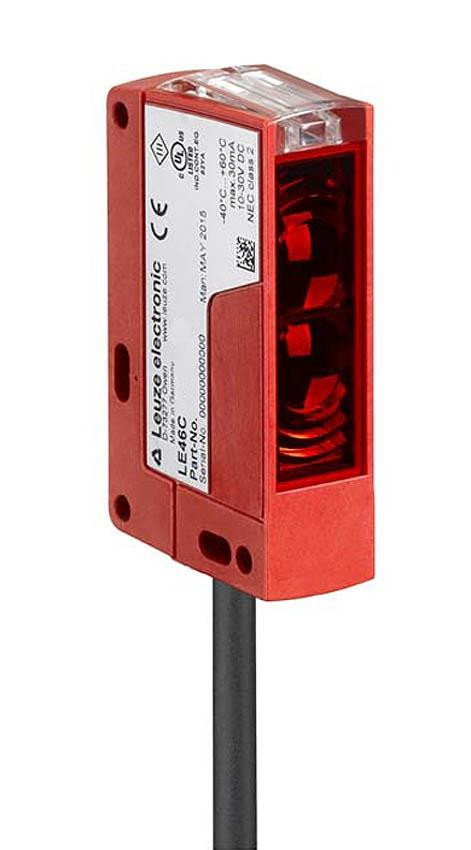

Photoelectric Sensor Receiver, Throughbeam, 0-150m, Cable, 2,000mm, 4-Wire, NCNR
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric, Throughbeam, Receiver 0...150 m, Cable, 2,000 mm, 4 -wire
Specifications
Alternate Part Number
LE46C/4P, Non-Cancellable / No Returns
Connection
w/Cable
NPN or PNP
PNP (Source)
Light On/Dark On
See Spec or N/A
Sensing Method
Through Beam
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67, IP69K
Series
See Specs
Size
See Spec
Warranty
2 Years
Weight
0.5
Features Include:
- Operating Principle: Throughbeam principle
- Device Type: Transmitter
- Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
- Residual Ripple: 0 - 15% From UB
- Open-Circuit Current: 0 - 20 mA

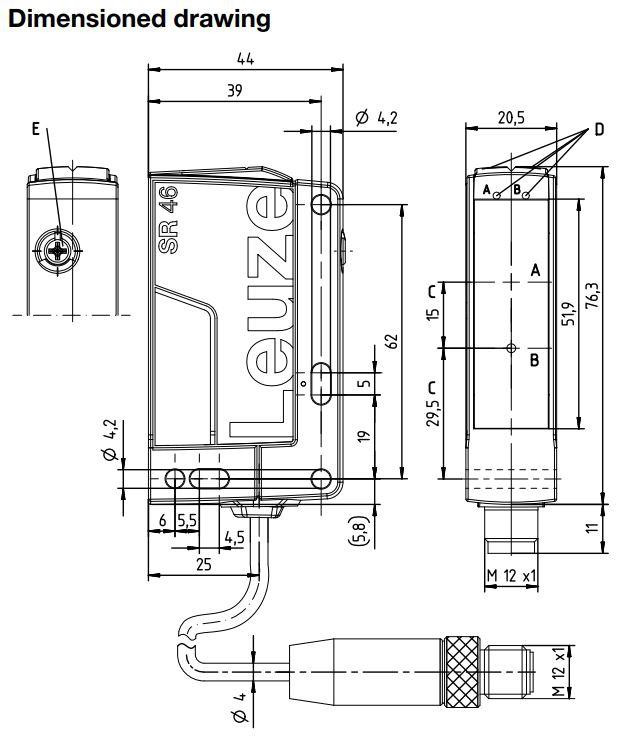

- Dimension (W x H x L): 20.5 mm x 76.3 mm x 44 mm
- Housing Material: Plastic, PC-PBT
- Lens Cover Material: Plastic/PMMA
- Type of Fastening: Via optional mounting device, Through-hole mounting
Connection:
- Type of Connection: Cable
- Number of Conductors: 4-wire
Optical Data:
- Operating Range: 0.5 - 120 m
- Operating Range Limit: 0 - 150 m
- Light Source: LED, Red
