$529.38
OEDK 10P5105/S35A
Alt: 10165141
$516.33

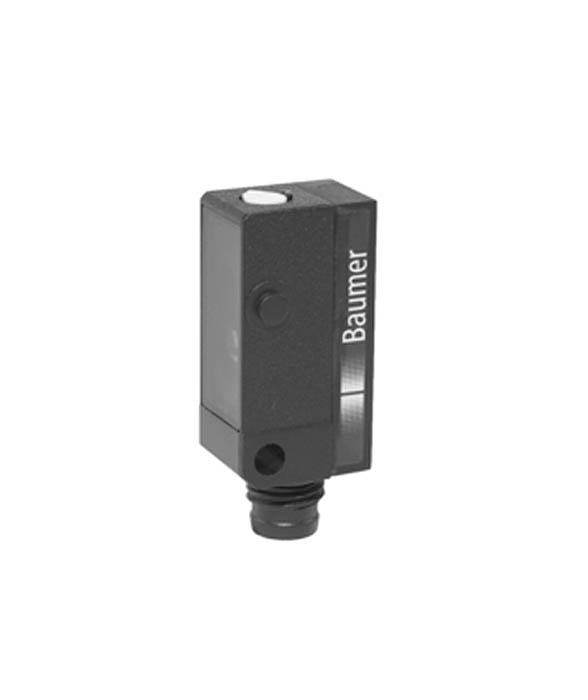

Photoelectric Through Beam Laser Sensor, Receiver, 11-30VDC, 100mA, 8-10m Range, 270° Potentiometer Sensitivity Adjustment, Light/Dark Operate, PNP, M8 4-pin Connector, IP67, Rectangular 27 x 10.4 x 14mm (HWD)
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Baumer is a worldwide leading manufacturer of sensors, encoders and measuring instruments. They are well known for object and position detection as well as distance measurement.
Baumer remains a family-owned business that was founded in 1952 by Herbert Baumer.
Specifications
Alternate Part Number
10165141
Connection
M8, Straight
Light Source
Laser
NPN or PNP
PNP (Source)
Light On/Dark On
Light ON/Dark ON
Sensing Method
Through Beam
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67
Size
Rectangular
Warranty
3 Years
Series
OEDK
Weight
.5
Features Include:
- Type: Through beam laser sensor
- Emitter / receiver: Receiver
- Actual range Sb: 8 m
- Nominal range Sn: 10 m
- Sensitivity adjustment: Potentiometer, 270°
- Voltage supply range +Vs: 11 - 30 VDC
- Current consumption typ.: 16 mA
- Voltage drop Vd: < 1.8 VDC
- Output function: Light / dark operate
- Output circuit: PNP
- Output current: < 100 mA
- Width / diameter: 10.4 mm
- Height / length: 27 mm
- Depth: 14 mm
- Housing material: >Plastic (ASA)
- Front (optics): PMMA
- Connection types: Connector M8 4 pin
