$364.00
FHCK 07P6901/KS35A
Alt: 10149511
$349.00

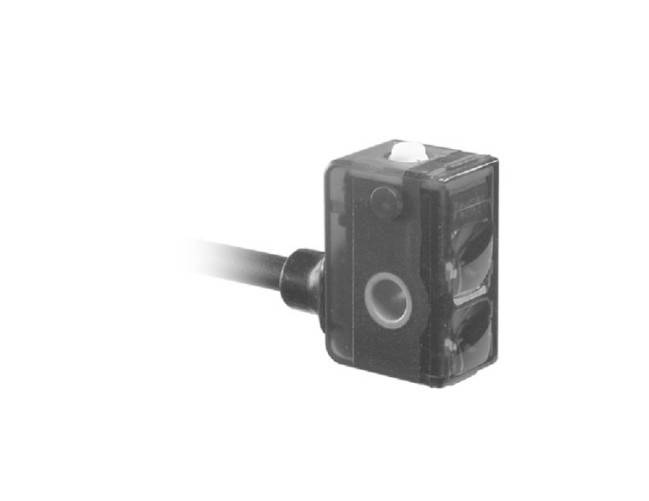

Photoelectric Sensor, Rectangular, Diffuse with Background Suppression, MINOS, 10-60mm Sensing Distance, Teach-In, 10-30VDC Voltage Supply, Plastic Housing, IP65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric Snsor, MINOS, Background Suppression
Features Include:
- Type: Background suppression
- Light source: Pulsed red LED
- Sensing distance Tw: 10 - 60 mm
- Sensing range Tb (at Tw max.): 2 - 60 mm
- Sensing range Tb (at Tw min.): 5 - 10 mm
- Alignment / soiled lens indicator: Flashing light indicator
- Light indicator: LED green
- Output indicator: LED yellow
- Sensing distance adjustment: Teach-in
- Wave length: 660 nm
- Response time / release time: < 0,5 ms
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 25 mA
- Current consumption typ.: 20 mA
- Output function: Light / dark operate
- Output circuit: PNP
- Output current: < 100 mA
- Width / diameter: 8 mm
- Height / length: 16.2 mm
- Depth: 10.8 mm
- Type: Rectangular
- Housing material: Plastic (PMMA, MABS, PA)
- Front (optics): PMMA
- Connection types: Flylead connector M8 4 pin, L=200 mm
Need More Information?
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
FPCK 07P6901/KS35A
Retroreflective Sensor, Polarization Filter, Subminiature, Pulsed Red LED, 10-30VDC, 0.6m Actual Range Sb, 0.8m Nominal Range, Teach-in, PNP, Light/Dark Operate, M8 4-Pin Flylead Connector (200mm Length), 17.8 x 8 x 12.6mm Rectangular HWD,
$339.00
Baumer
FHCK 07N6901/KS35A
Subminiature Diffuse Sensor with Background Suppression (BGS), Pulsed Red LED, Teach-In, 10-30VDC, 60mm Range, NPN, Light/Dark Operate, 100mA, 8 x 16.2 x 10.8 (WHD), Flylead Connector M8 4-Pin 200mm Length, Ambient Temperature: -20 to +50°C, IP65
$349.00
Baumer

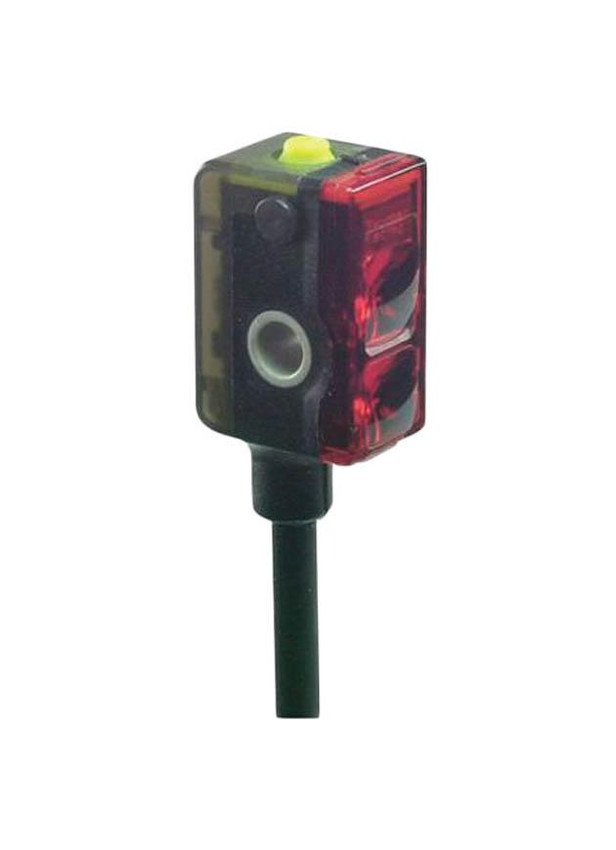

FPDK 07P6901/KS35A
Retroreflective Sensor, Subminiature, Pulsed Red LED, 10-30VDC, 0.6m Actual Range Sb, 0.8m Nominal Range Sn, Teach-in, PNP, Light/Dark Operate, M8 4-Pin Flylead Connector (200mm Length), 17.8 x 8 x 12.6mm HWD, Plastic Housing, PMMA Optics,
$339.00
Baumer
FECK 07P6901/KS35A
Through Beam Sensor, Subminiature, Receiver, 10-30VDC, 2m Actual Range Sb, 2.5m Nominal Range Sn, Teach-in, PNP, Light/Dark Operate, M8 4-Pin Flylead (200mm Length), 16.2 x 8 x 10.8mm (HWD), Plastic Housing, PMMA Optics, -20 to +50°C, IP65
$279.00
$279.00
$314.00
$314.00
Baumer
FHDK 07P6901/KS35A
Subminiature Diffuse Sensor, Background Suppression, Pulsed Red LED, 10-60mm Range Tw, 10-30VDC, Light/Dark Operate, PNP, <100mA, Flylead Connector M8 4-Pin 200mm Length, 16.2 x 8 x 10.8mm (HWD), Plastic Housing, PMMA Optics, -20 to +50°C,
$349.00
