Baumer
FHCK 07P6901/KS35A

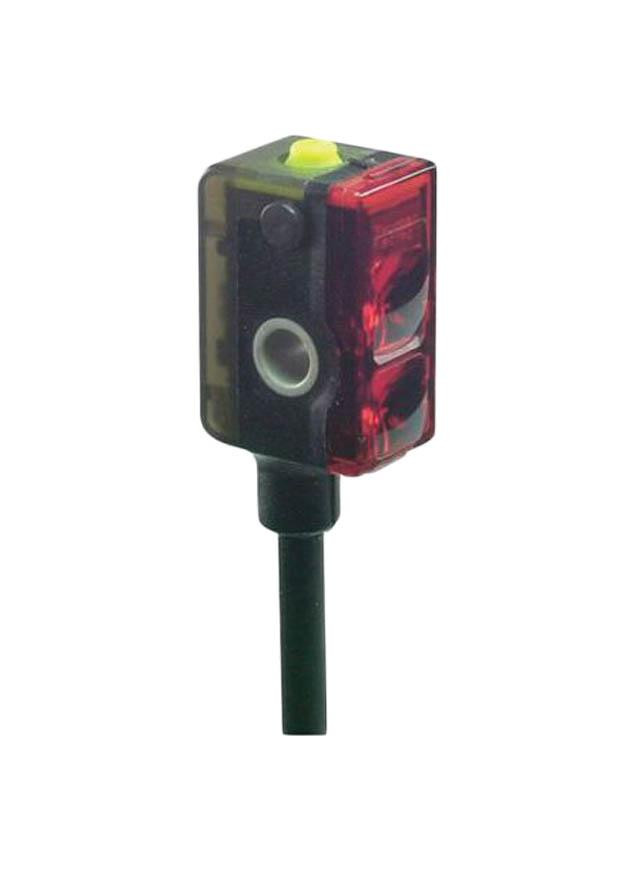

Photoelectric Sensor, Rectangular, Diffuse with Background Suppression, MINOS, 10-60mm Sensing Distance, Teach-In, 10-30VDC Voltage Supply, Plastic Housing, IP65
$349.00
Available Now!
Available Now!
(1 in stock)
FHCK 07P6901
Alt: 10148791
$364.00
Photoelectric Sensor, MINOS, Background Suppression
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric Snsor, MINOS, Background Suppression
Features Include:
- Type: Background suppression
- Light source: Pulsed red LED
- Sensing distance Tw: 10 - 60 mm
- Sensing range Tb (at Tw max.): 2 - 60 mm
- Sensing range Tb (at Tw min.): 5 - 10 mm
- Alignment / soiled lens indicator: Flashing light indicator
- Light indicator: LED green
- Output indicator: LED yellow
- Sensing distance adjustment: Teach-in
- Wave length: 660 nm
- Response time / release time: < 0,5 ms
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 25 mA
- Current consumption typ.: 20 mA
- Output function: Light / dark operate
- Output circuit: PNP
- Output current: < 100 mA
- Width / diameter: 8 mm
- Height / length: 16.2 mm
- Depth: 10.8 mm
- Type: Rectangular
- Housing material: Plastic (PMMA, MABS, PA)
- Front (optics): PMMA
- Connection types: Cable rear side, 2 m
