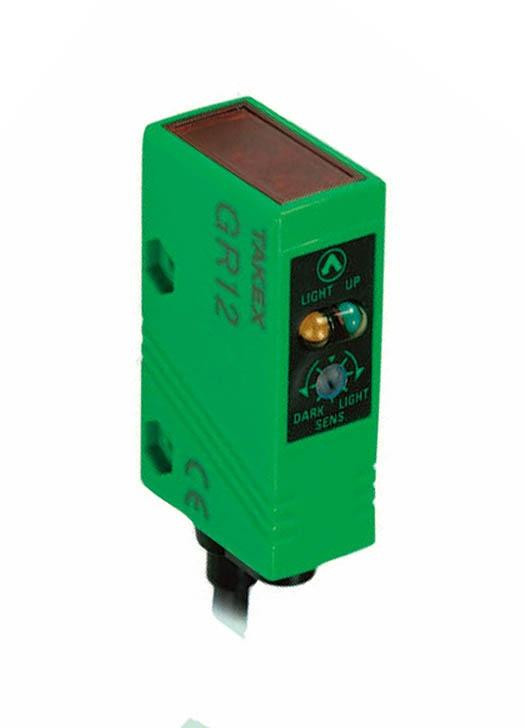

GR12GN

Features Include:

• IP67 rated housing filled with resin allows washing together with line equipment
• Detection Method: Convergent reflective
• Detection Distance: 12mm ± 2mm
• Power Supply: 12-24V DC±10% / Ripple 10% or less
• Current Consumption: 35mA or less
• Operation Mode: Light-ON / Dark-ON selectable (with switch)
• Anti Interference feature: Available (up to two units)
• Spot Diameter: dia.1mm
• Smallest detectable mark width: 0.5 mm (green mark on white background)
• Connection: Cable type (outer diameter: dia.4.2mm) 0.3 mm2 x 3 cores, 2 m
• Response Time: 0.5ms or less
• Light source (Light wavelength): Red LED (660nm)
• Connection: Cable type (outer diameter: dia.4.2mm) 0.3 mm2 x 3 cores, 2 m
• Volume (VR): 4 turn sensitivity adjustment without stopper provided
• Anti Interference feature: Available (up to two units)
• Material: Case:Polyarylate Lens:Polycarbonate (lens of GR12UVS: glass)
• Weight: approx. 80g

Output Mode:

• NPN open collector output
• Rating: sink current 100 mV (30 VDC) or less

Indicator:

• Red LED: Light reception indicator
• Green LED: Stability Indicator

Environmental Specifications:

• Ambient Light: 3,000 lx or more
• Ambient Temperature: -25°C - +55°C (non-freezing)/Storage -30°C- +70°C
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
• Shock: 1000 m/s2 / 3 times each in 3 directions
• Dielectric withstanding: 1,000 VAC for 1 minute
• Insulation resistance: 500 VDC, 20 MΩ or higher
• Shock: 1000 m/s2 / 3 times each in 3 directions
