AS-U25D

$92.65

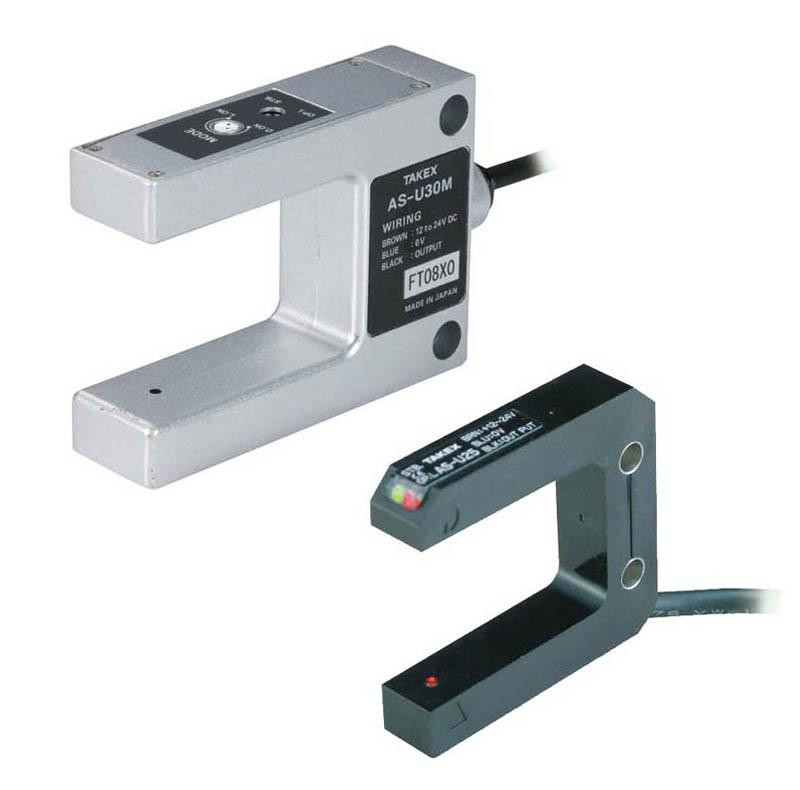

Photoelectric Sensor, Through Beam, U Shape, NPN, Infrared LED, 25mm Gap Detect, 2mm Dia, Cable

Weight:
0.25 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Photoelectric Sensor, Through Beam, U Shape, NPN, Infrared LED, 25mm Gap Detect, 2mm Dia, Cable
Specifications
Connection See Spec
NPN or PNP See Spec or N/A
Light On/Dark On See Spec or N/A
Sensing Method See Spec or N/A
Type of Photoelectric See Spec or N/A
All - Specific Ratings See Spec
Series See Specs
Size See Spec
Warranty 1 Year
Weight 0.25
Quantity 1

Features Include:

  • Detection Method: Through beam type (U-shaped)
  • Detecting Distance: 25mm fixed
  • Detection Object: dia.2mm or more Opaque
  • Power Supply: 12-24V DC ±10% / Ripple 10% or less
  • Current Consumption: 20mA or less
  • Output Mode:  NPN open collector Rating: sink current 100 mA (30 VDC) or less
  • Operation Mode: Dark ON
  • Response Time: 0.35ms or less
  • Light Souce (light wavelength): Red LED (700 nm)
  • Indicator: Operation indicator (red LED), Stability indicator (green LED)
  • Short Circuit Protection: Provided
  • Material: ABS
  • Connection: Attached Cable (outer dimension: dia. 4mm) 0.2 mm2 3 cores 2 m
  • Ambient Temperature: AS series: -25 - +55C (non-freezing), PU series: -10 - +55C
  • Ambient Humidity: 35-85%RH (non-condensing)
  • Protective Structure: IP67 (IP 40 for PU10)
  • Vibration: 10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
  • Shock: 500 VAC for 1 minute
