UM-T50DTVP
Alt: Includes Transmitter/Receiver
$110.64
Photoelectric Sensor, Through Beam, PNP, Transmitter/Receiver, 500mm, Cable, Ultra Mini
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description

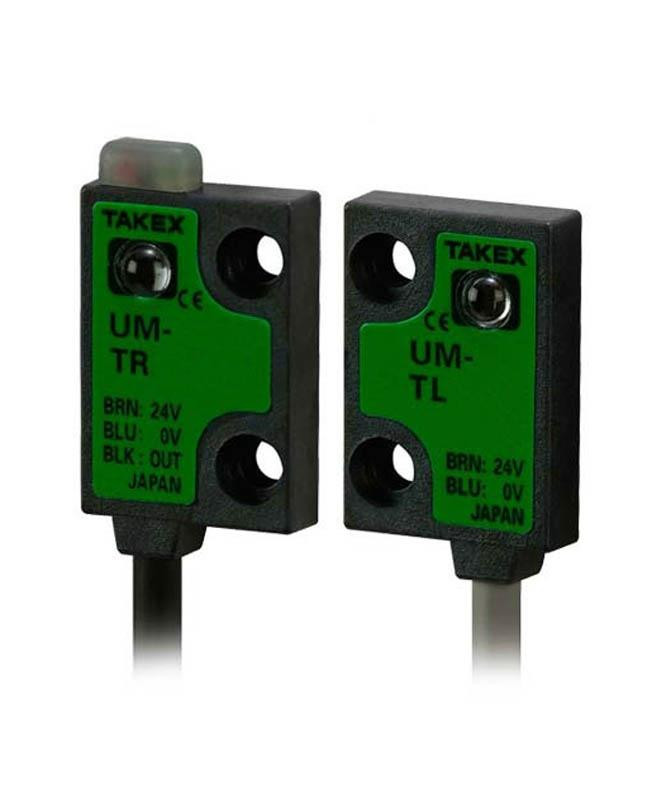

Our Takex UM Series is an ultraminiature photoelectric sensor that is ideal when you need a thin, compact sensor!
- Available in through beam, diffuse reflective or convergent reflective
- Ranges from 2 to 1m (through beam)
- Red LED light source
- 3.5mm achieved with embedded amplifier
Features Include:
- Detection Method: Through beam
- Detection Distance: 500mm
- Detection Object: dia.3mm (or more) Opaque
- Power Supply: 24VDC±10% / Ripple 10% or less
- Current Consumption: 104mA or less
- Output Mode: PNP open collector Rating: sink current 80mA (30 VDC) or less
- Response Time: 0.5ms or less
- Operating Angle: 25° (at receiver)
- Light source: Red LED (640nm)
- Volume: in-line sensitivity adjustment
- Material: Case: Liquid crystalline polyester (filler: polypropylene) Lens: Acryl resin
- Weight: Transmitter : Approx. 30g Receiver : Approx. 40g
Current Consumption:
- Transmitter: 15mA or less
- Receiver: 22mA or less
Indicator:
- Transmitter: -
- Receiver: Operation indicator (red LED), Stability indicator (green LED)
Connection:
- Attached cable (dia. 2.8)
- Transmitter: 0.15 mm2 x 2 cores 2m (gray)
- Receiver: 0.15 mm2 x 3 cores 2m (black)
Environmental Specifications:
- Ambient Light: 3,000 lx or less
- Ambient Temperature: -25°C - +55°C (non-freezing)
- Ambient Humidity: 35 - 85%RH (non-condensing)
- Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
