GT1N

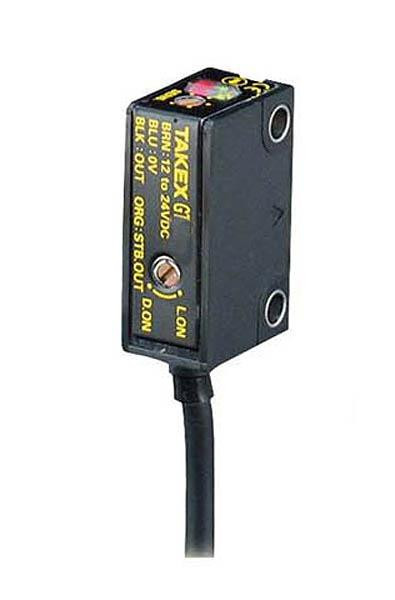

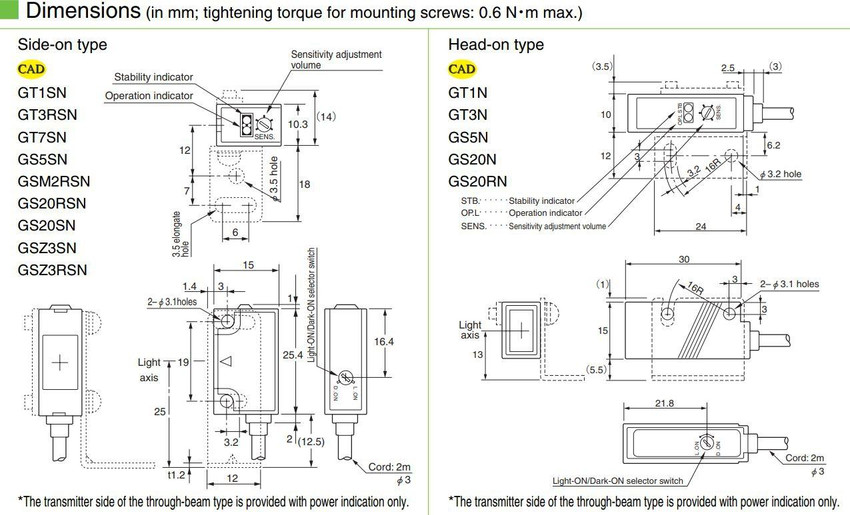

Photoelectric Sensor, Through Beam, NPN, Infrared LED, 12/24VDC, 1000mm Range, Cable

Features Include:

• Ultra-compact size used for built-in use for over 25 years
• Various types such as head-on, wide diffuse reflective, high power or convergent reflective
• M3 threaded screw can be used for all models
• Water resistance complying with IP67
• Detection Method: Through beam
• Detection Distance:1 m
• Detection Object: dia.6mm (oe more) Opaque
• Power Supply: 12-24V DC ±10‚àö√Ƭ¨‚à´‚àö√± / Ripple 10‚àö√Ƭ¨‚à´‚àö√± or less
• Operation Mode: Light-ON / Dark-ON selectable (with switch)
• Operating Angle: 30° (at reflector)
• Response Time: 0.35ms or less
• Operating Angle: 30°(at receiver)
• Light source (light wavelength): Infrared LED (880nm)
• Volume (VR): SENS: Sensitivity adjustment (on receiver for through-beam type)
• Switch (SW): Light-ON / Dark-ON selector switch
• Material: Case: Polyarylate, Lens: Polycarbonate
• Weight: approx. 50g

Current Consumption:

• Transmitter: 23mA or less
• Receiver: 18mA or less

Output Mode:

• Control output : NPN open collector output Rating: sink current 100mA (30 VDC) or less
• Stability output : NPN open collector output Rating: sink current 50mA (30 VDC) or less

Connection:

• Cable type (outer diameter: 3mm; length 2m)
• Transmitter: 0.15mm2 x 2 cores (gray)
• Receiver: 0.15mm2 x 3 cores (black)

Indicator:

• Transmitter: Red LED Power indicator
• Receiver: Red LED: Operation indicator
• Green LED: Stability Indicator

Environmental Specifications:

• Ambient Light: 5,000 lx or more
• Ambient Temperature:-25 - +55C (non-freezing)
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
• Shock: 500 m/s2 / 3 times each in 3 directions
• Dielectric withstanding: 1,000 VAC for 1 minute
• Insulation resistance: 500 VDC, 20 MΩ or higher
