GT5RSN

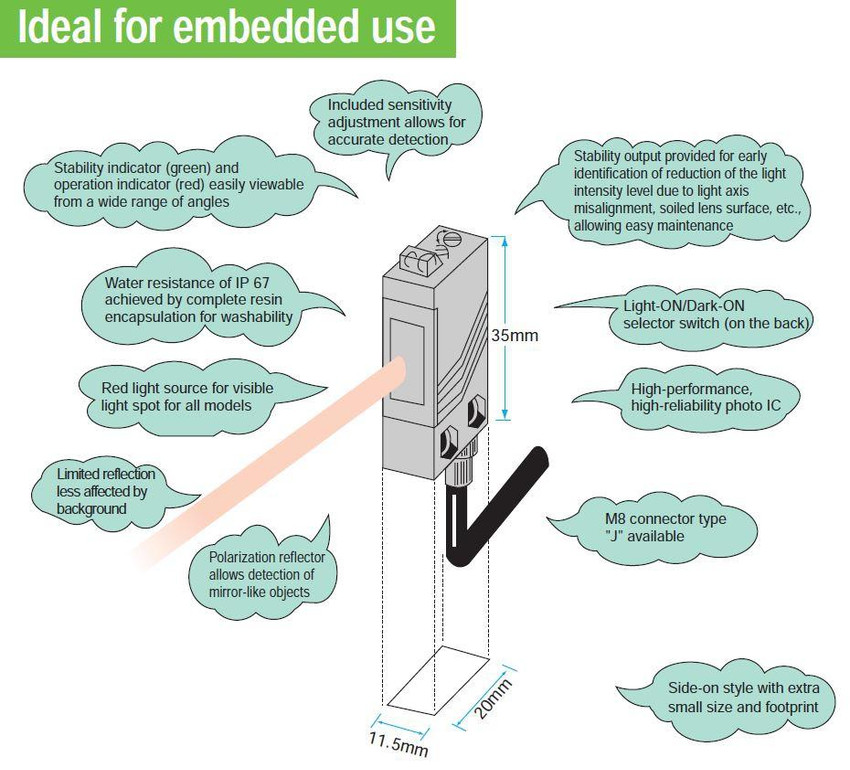

Features Include:

• Completely filled with resin to be IP67 compliant
• Improved water resistance and intensity suitable for conveyor lines
• The operation mode can be selected by a switch
• Sensitivity adjustment for fine detection
• Globally compatible PNP types also conveniently provided with stability output
• Optional rigid protective cover (mounting bracket) available
• Detection Method: Through beam
• Detection Distance:7 m
• Detection Object: dia.20mm (oe more) Opaque
• Power Supply: 12-24V DC ±10‚àö√Ƭ¨‚à´‚àö√± / Ripple 10‚àö√Ƭ¨‚à´‚àö√± or less
• Operation Mode: Light-ON / Dark-ON selectable (with switch)
• Operating Angle: 10° (at reflector)
• Response Time: 0.5ms or less
• Light source (light wavelength): Red LED (700nm)
• Volume (VR): SENS: Sensitivity adjustment (on receiver for through-beam type)
• Switch (SW): Light-ON / Dark-ON selector switch
• Material: Case: Polyarylate, Lens: Acrylic
• Weight: approx. 80g

Current Consumption:

• Transmitter: 20mA or less
• Receiver: 20mA or less

Output Mode:

• Control output : NPN open collector output Rating: sink current 100mA (30 VDC) or less
• Stability output : NPN open collector output Rating: sink current 50mA (30 VDC) or less
• Residual voltage: 1 V or less

Connection:

• Attached cable (outer diameter 4.2)
• Transmitter: Transmitter of through-beam type: 0.3 mm2 2 core 2 m length (gray)
• Receiver of through-beam type, reflective type : 0.2 mm2 4 core 2 m (black)
