FEDK 14P5101/S14
Alt: 11003495
$238.59

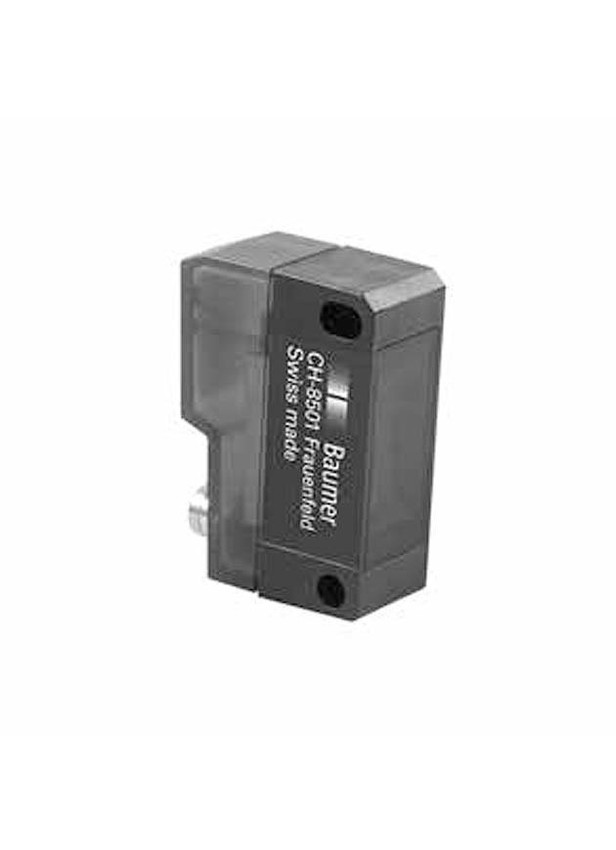

Photoelectric Sensor, Thru-Beam
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric Sensor, Through Beam
Specifications
Alternate Part Number
11003495
Connection
M12, Straight
Light Source
LED
NPN or PNP
PNP (Source)
Light On/Dark On
Light ON/Dark ON
Sensing Method
Through Beam
Type of Photoelectric
See Spec or N/A
All - Specific Ratings
IP67
Size
Rectangular
Warranty
3 Years
Series
FEDK
Weight
0.5000
Features Include:
- Type: Through beam sensor
- Emitter / receiver: Receiver
- Actual range Sb: 12 m
- Nominal range Sn: 15 m
- Alignment / soiled lens indicator: Flashing light indicator
- Light indicator: LED yellow
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 20 mA
- Current consumption typ.: 20 mA
- Output function: Light / dark operate
- Output circuit: PNP
- Width / diameter: 14.8 mm
- Height / length: 43 mm
- Depth: 31 mm
- Type: Rectangular
- Housing material: Plastic (ASA, MABS)
- Front (optics): PMMA
- Connection types: Connector M12 4 pin
