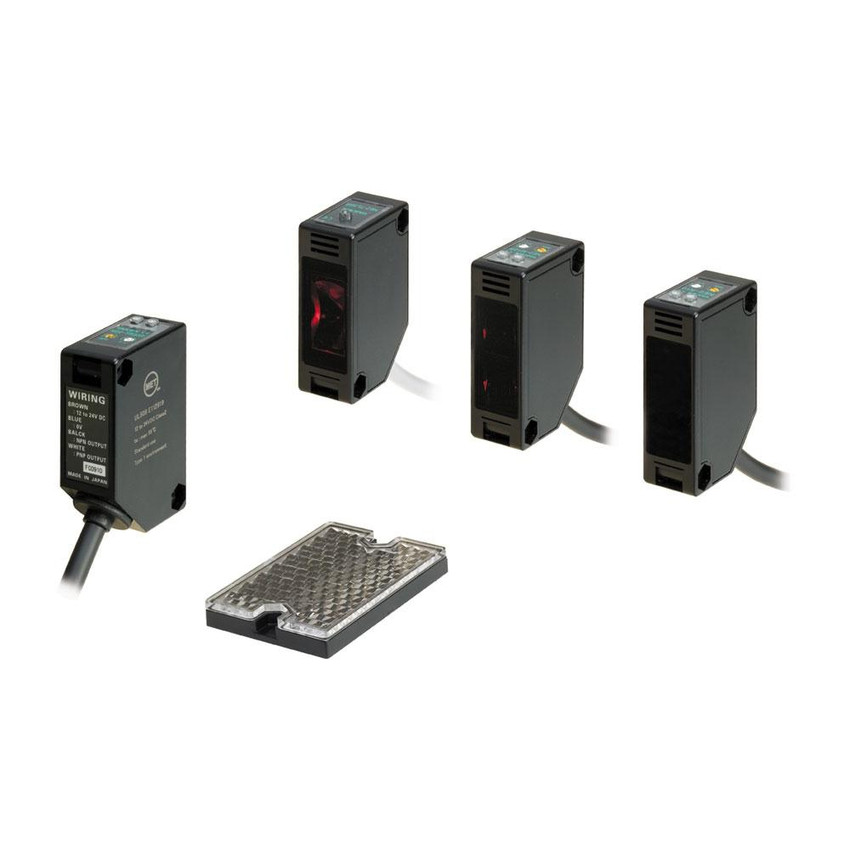

NE2-M10R-2

Features Include:

• Detection Method: Polarized retroreflective
• Detection Distance: 0.05-8m (With reflector model K-7)
• Detection Object: Mirror-like, opaque and translucent
• Current Consumption: 28mA or less
• Power Supply: 12-24V DC ±10% / Ripple10% or less
• Output Mode: NPN / PNP open collector dual output Rating : Sink current 100mA, (30 VDC) or less
• Operation Mode: Light ON/Dark ON (with control lead)
• Anti Interference Feature: Provided (for 2 sensors)
• Response Time: 0.5ms or less
• Light source (light wavelength): Red LED (700 nm)
• Volume (VR): SENS: sensitivity adjustment (on receiver for through beam type)
• Material: Case: Polycarbonate / Lens: acrylic
• Switch: Dark ON / Light ON selector switch
• Short Circuit Protection: Output short circuit protection, protection against reverse connection, surge absorber
• Connection: Outer dimension: dia. 6mm, 0.3 mm, 4 cores 2 m (black
• Weight: Approx.125g

Indicator:

• Operation indicator (red LED)
• Stability indicator (green LED)

Environmental Specifications:

• Ambient Light: 5,000 lx or less
• Ambient Temperature:-25 - +55C (storage: -40- +70°) (non-freezing)
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
• Shock: 500 m/s2 / 3 times each in 3 directions
• Dielectric withstanding: 1,000 VAC for 1 minute
• Insulation resistance: 500 VDC, 20 MΩ or higher
