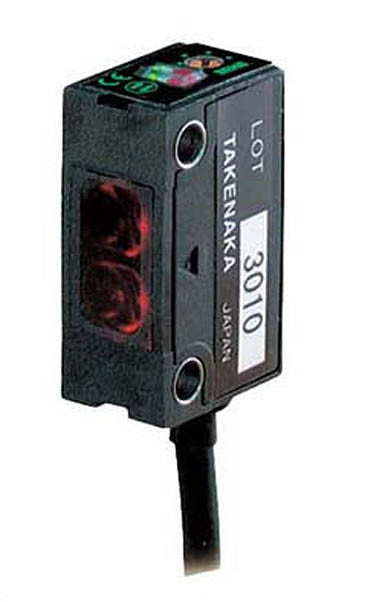

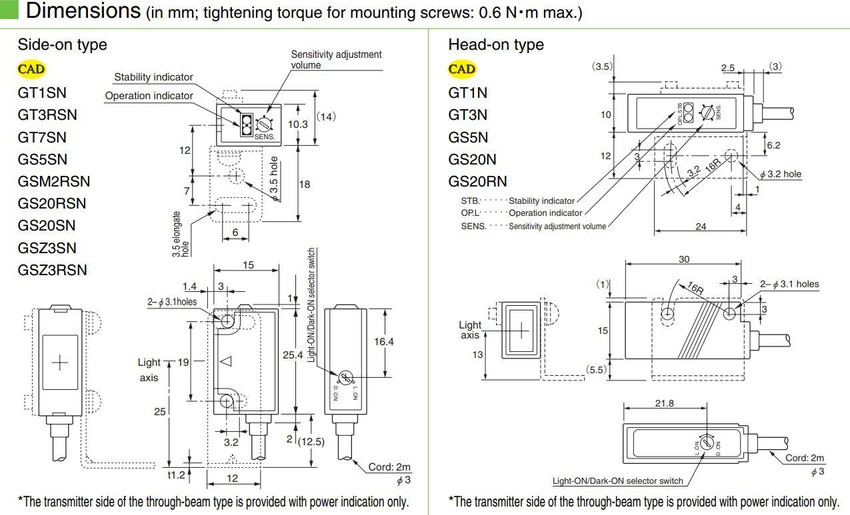

GSM2RSN

Features Include:

• Ultra-compact size used for built-in use for over 25 years
• Various types such as head-on, wide diffuse reflective, high power or convergent reflective
• M3 threaded screw can be used for all models
• Water resistance complying with IP67
• Detection Method: Retroreflective
• Detection Distance: 0.01-2m (When used with K-71)
• Detection Object: dia.40mm (or more) Opaque
• Current Consumption: 20mA or less
• Power Supply: 12-24V DC ±10% / Ripple 10% or less
• Operation Mode: Light-ON / Dark-ON selectable (with switch)
• Operating Angle: 30°(at receiver)
• Response Time: 0.35ms or less
• Light source (light wavelength): Red LED (700nm)
• Volume: SENS: Sensitivity adjustment (on receiver for through-beam type)
• Switch: Light-ON / Dark-ON selector switch
• Material: Case: Polyarylate, Lens: Polycarbonate
• Weight: approx. 50g

Output Mode:

• Control output: NPN open collector output Rating: sink current 100mA (30 VDC) or less
• Stability output: NPN open collector output Rating: sink current 50mA (30 VDC) or less

Indicator:

• Red LED: Operation indicator
• Green LED: Stability Indicator

Connection:

• Cable type (outer diameter: 3mm; length 2m)
• Transmitter: 0.15mm2 x 2 cores (gray)
• Receiver: 0.15mm2 x 3 cores (black)

Environmental Specifications:

• Ambient Light: 5,000 lx or more
• Ambient Temperature:-25 - +55C (non-freezing)
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
• Shock: 500 m/s2 / 3 times each in 3 directions
• Dielectric withstanding: 1,000 VAC for 1 minute
• Insulation resistance: 500 VDC, 20 MΩ or higher

Need More Information?

• Takex Mini-G Series Catalog
• Takex Embedded Amplifier Photo Sensors Catalog
• Takex America Inc. Training Manual
