Takex
ASG-S20R
Photoelectric Sensor, Glass Water Detection, NPN, Diffuse, Red LED, 20mm Or Less Detect, Cable
$63.61
ASG-Z15RPN
$63.61

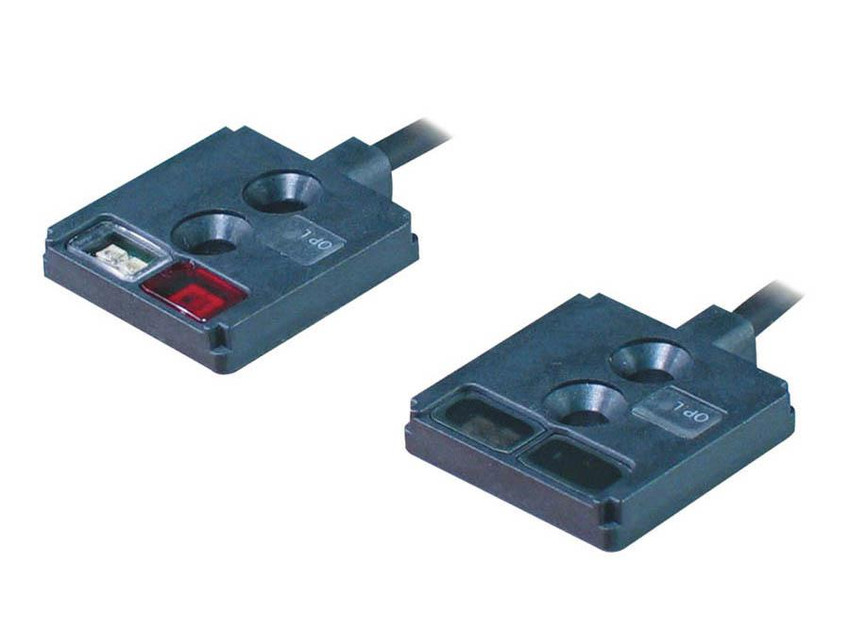

Photoelectric Sensor, Glass Water Detection, PNP, Convergent, Red LED, 18mm Or Less Detect, Cable, ASG Series
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric Sensor, Glass Water Detection, PNP, Convergent, Red LED, 18mm Or Less Detect, Cable
Features Include:
- Detection Method: Convergent reflective sensor for glass detection
- Detecting Distance:Transparent glass 3 - 15mm 18mm or less.(*)
- Detection Object: Transparent glass
- Power Supply: 12-24V DC ±10% / Ripple 10% or less
- Current Consumption: 35mA or less
- Output Mode: PNP open collector output: Source current 50 mA (30 VDC or less)
- Operation Mode: Light ON
- Response Time: 0.5ms or less
- Light Souce (light wavelength): 2 red LED
- Indicator: Operation indicator (orange LED)
- Short Circuit Protection: Provided
- Material: Case: Polybutylene terephthalate, Window: Polybutylene terephthalate
- Connection: Attached Cable (Outer dimension: dia. 2.7mm, 0.15mm2 3cores 2m)
- Ambient Temperature: -10 - +55 C (non-freezing)
- Ambient Humidity: 35-85%RH (non-condensing)
- Protective Structure: IP40
- Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
