ASG-S20R

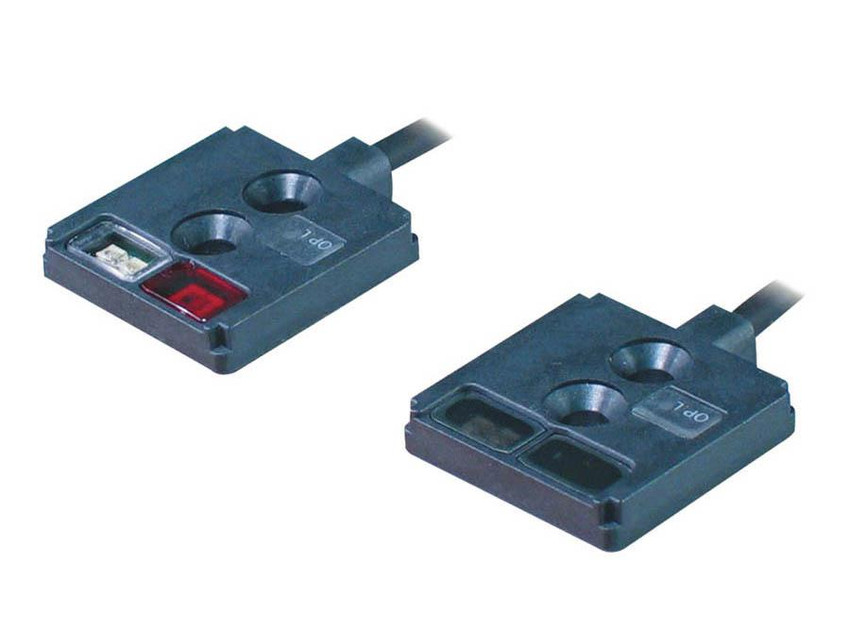

Product image is representative only, please verify specifications.

Takex

ASG-S20R

$67.15

Photoelectric Sensor, Glass Water Detection, NPN, Diffuse, Red LED, 20mm Or Less Detect, Cable

Weight:
0.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Photoelectric Sensor, Glass Water Detection, NPN, Diffuse, Red LED, 20mm Or Less Detect, Cable
Specifications
Connection w/Cable
Light Source LED
NPN or PNP NPN (Sink)
Light On/Dark On Light ON
Sensing Method See Spec or N/A
Type of Photoelectric See Spec or N/A
All - Specific Ratings IP40
Series ASG Series
Size See Spec
Warranty 1 Year
Weight .1

Features Include:

  • Detection Method: Diffuse reflective sensor for glass detection
  • Detecting Distance:Transparent glass 20mm or less. 25mm or less.(*)
  • Detection Object: Transparent glass
  • Power Supply: 12-24V DC ±10% / Ripple 10% or less
  • Current Consumption: 25mA or less, 30mA or less (*1)
  • Output Mode: NPN open collector output: Slink current 50 mA (30 VDC or less)
  • Operation Mode: Light ON
  • Response Time: 0.5ms or less
  • Light Souce: 2 red LEDs
  • Indicator: Operation indicator (orange LED)
  • Short Circuit Protection: Provided
  • Material: Case: Polybutylene terephthalate, Window: Polybutylene terephthalate
  • Connection: Attached Cable (Outer dimension: dia. 2.7mm, 0.15mm2 3cores 2m)
  • Ambient Temperature: -10 - +55 C (non-freezing)
  • Ambient Humidity: 35-85%RH (non-condensing)
  • Protective Structure: IP40
  • Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
