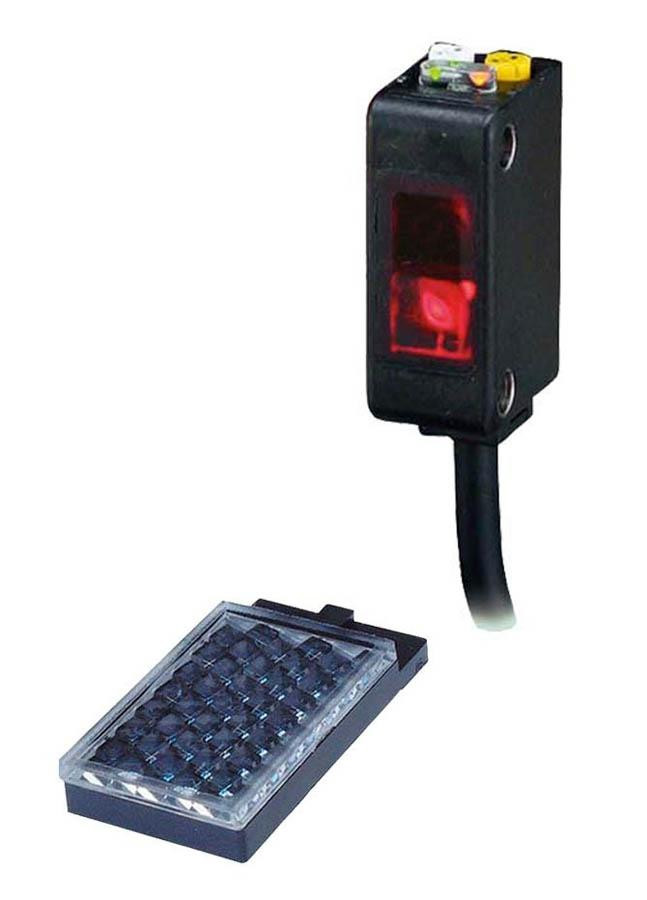

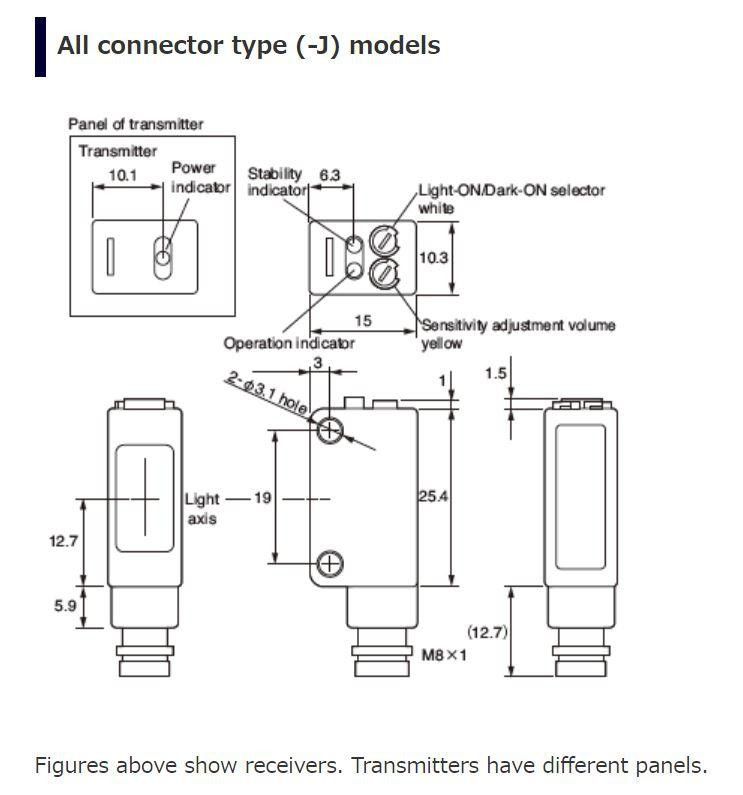

GN-R7CPN-J

Features Include:

• New type of amplifier built-in photo sensor
• Slim and compact side-on models
• Lightweight and compact Thin, space-saving sensor allowing flexible mounting
• Flat lens less affected by dust or dirt attached Superb stability with the high power (detecting distance of 10 m)
• High-intensity indicators for increased visibility Easy checking of sensor operation from a distance
• Detection Method: Diffuse reflective
• Detection Distance: 70mm (100 x 100 mm white drawing paper)
• Detection Object: Opaque, translucent, and transparent
• Power Supply: 12-24V DC±10% / Ripple 10% or less
• Current Consumption: 25mA or less
• Operation Mode: Light-ON / Dark-ON selectable (with switch)
• Mutual interference prevention function: Provided (up to 2 sensors)
• Hysteresis: Up to 10% of detecting distance
• Response Time: 0.5ms or less
• Light Source: Infrared LED (880nm)
• Connection: Attached cable (dia. 3.5mm) 0.2 mm2 x 3 cores 2m (black)
• Volume (VR): Sensitivity adjustment (on receiver for through beam type)
• Switch (SW): Light-ON / Dark-ON selector switch
• Material: Case: Polybutylene terephthalate, Lens: Methacrylate
• Weight: approx. 60g

Output Mode:

• PNP open collector
• Rating: source current 100mA (30 VDC) or less
• Residual voltage: 2 V or less

Indicator:

• Orange LED: Operation Indicator
• Green LED: Stability Indicator

Connection:

• Attached cable (dia.3.5mm)
• Transmitter: 0.2 mm2 x 2 cores 2m (gray)
• Receiver: 0.2 mm2 x 3 cores 2m (black)

Environmental Specifications:

• Ambient Light: 5,000 lx or more
• Ambient Temperature: -25°C - +55°C (non-freezing)/Storage -30°C- +70°C
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
• Shock: 500 m/s2 / 3 times each in 3 directions
• Dielectric withstanding: AC1000V 1 or more
• Insulation resistance: 500 VDC, 20 MΩ or higher
• Shock: 500 m/s2 / 3 times each in 3 directions
