Baumer
ESW 31AH0200
Connecting Cable, 2m 4 Pin PUR Halogen Free, for M8 Female Angled Connector, Free Cable End, Suitable for ATEX Flexible Cable Carriers, Unshielded, IP65/67/68
$20.00

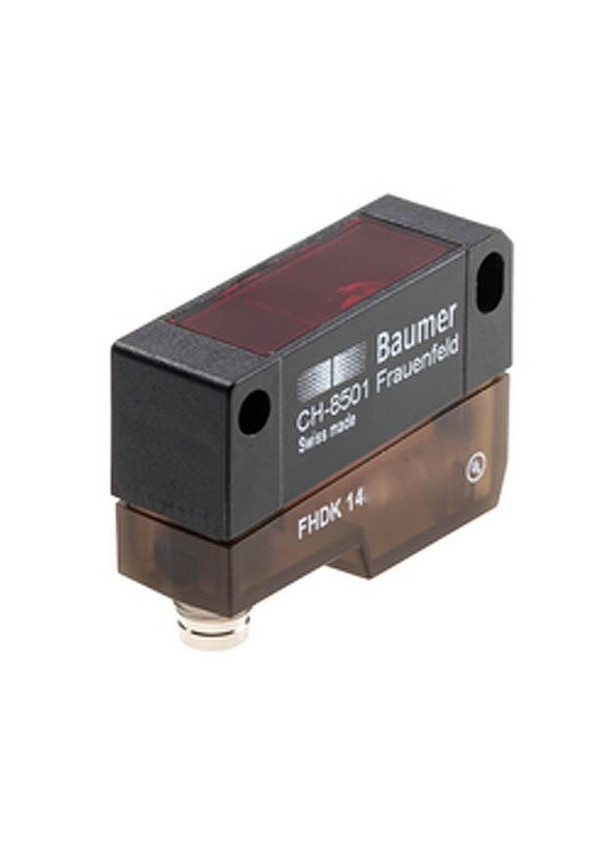

FHDK 14N5101/S35A
Alt: 11001032
$304.00
Diffuse Sensor, Background Suppression (BGS), Pulsed Red LED, 20-350mm Range Tw, Mechanical 10-Turn Adj., 10-30VDC, Light/Dark Operate, NPN, <100mA, M8 4-Pin Connector, 43 x 14.8 x 31mm HWD, Plastic Housing, PMMA Optics, -25 to +65°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric Sensor, Diffuse, Background Supp.
Features Include:
- Type: Background suppression
- Light source: Pulsed red LED
- Sensing distance Tw: 20 - 350 mm
- Sensing range Tb (at Tw max.): 20 - 350 mm
- Sensing range Tb (at Tw min.): 5 - 20 mm
- Alignment / soiled lens indicator: Flashing light indicator
- Light indicator: LED yellow
- Sensing distance adjustment: Mechanical, 10 turn
- Wave length: 660 nm
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 30 mA
- Current consumption typ.: 25 mA
- Voltage drop Vd: < 1.8 VDC
- Output function: Light/Dark operate
- Output circuit: NPN
- Output current: < 100 mA
- Width / diameter: 14.8 mm
- Height / length: 43 mm
- Depth: 31 mm
- Type: Rectangular
- Housing material: Plastic (ASA, MABS)
- Front (optics): PMMA
- Connection types: Connector M8 4 pin
Technical Information:
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$20.82
$15.00

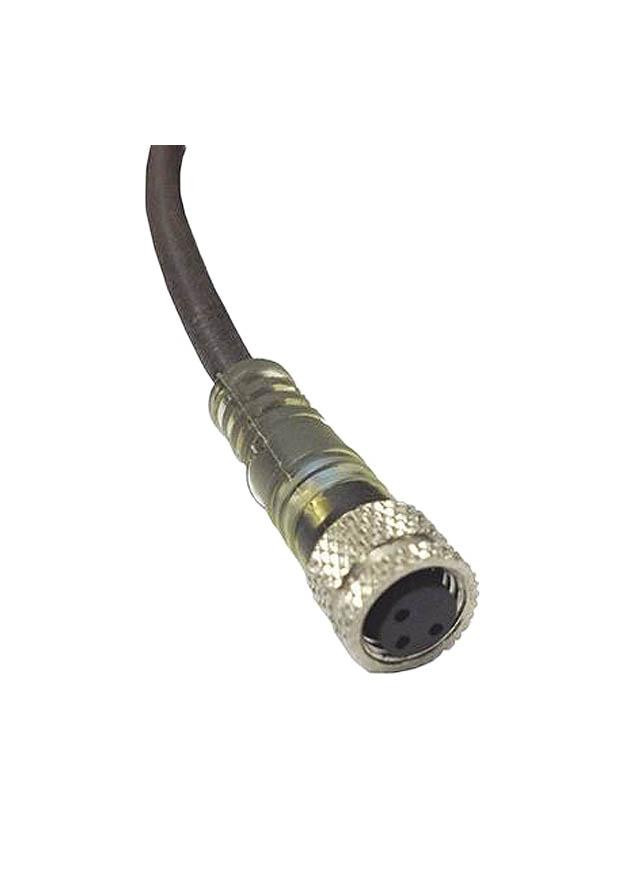

Baumer
ESG 32AH0200
Cable, 2m, M8 4-pin, Straight, Unshielded, Female, Free Cable End, PUR Halogen-Free
$20.00
Baumer
ESG 32AH0500
Cable, 5m, M8 4-pin, Straight, Unshielded, Female, Free Cable End, PUR Halogen-Free
$18.09
Baumer
ESG 32AH1000
Cable, 10m, M8 4-pin, Straight, Unshielded, Female, Self-Locking Cap Nut, PUR Halogen-Free
$31.35
