FHDK 04G6111
Baumer

FHDK 04G6111

Alt: 10162792

$349.00

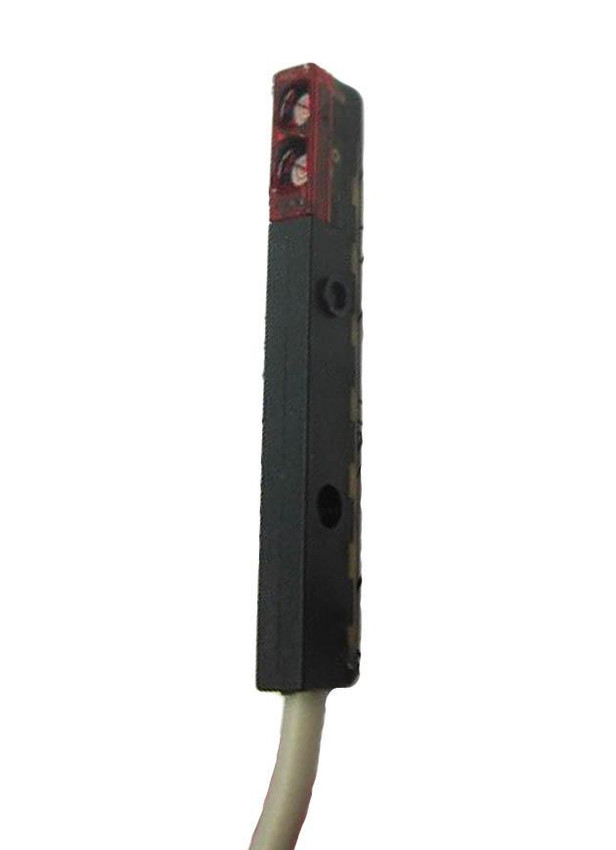

Subminiature Diffuse Sensor, Background Suppression (BGS), Pulsed Point Source LED, 30mm ±2mm Range Tw, 11-30VDC, Dark Operate, Push-Pull, <50mA, 2m 3-Pin Cable, 44.8 x 4 x 6.2mm (HWD), Plastic (ASA) Housing, PMMA Optics, -10 to 50°C, IP65

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Photoelectric Sensor, Diffuse, Background Supp.

Features Include:

  • Type: Background suppression
  • Light source: Pulsed point source LED
  • Sensing distance Tw: 30 mm ±2 mm
  • Alignment / soiled lens indicator: Flashing light indicator
  • Light indicator: LED yellow
  • Wave length: 660 nm
  • Beam diameter: 2 mm
  • Voltage supply range +Vs: 11 - 30 VDC
  • Current consumption max. (no load): 30 mA
  • Current consumption typ.: 20 mA
  • Voltage drop Vd: < 2 VDC
  • Output function: Dark operate
  • Output circuit: Push-pull
  • Output current: < 50 mA
  • Width / diameter: 4 mm
  • Height / length: 44.8 mm
  • Depth: 6.2 mm
  • Type: Rectangular
  • Housing material: Plastic (ASA)
  • Front (optics): PMMA
  • Connection types: Cable 3 pin, 2 m
