FHDK 04G6101
Baumer

FHDK 04G6101

Alt: 10162790

$349.00

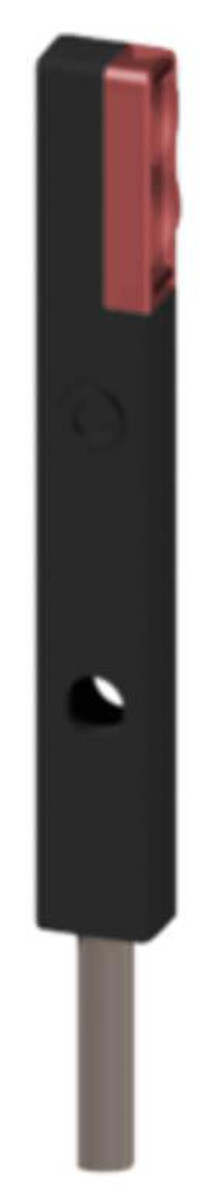

Subminiature Diffuse Sensor, Background Suppression (BGS), Pulsed Point Source LED, 30mm ±2mm Range Tw, 11-30VDC, Light Operate, Push-Pull, <50mA, 2m 3-Pin Cable, 44.8 x 4 x 6.2mm (HWD), Plastic (ASA) Housing, PMMA Optics, -10 to 50°C, IP65

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Photoelectric Sensor, Diffuse, Background Supp.

Features Include:

  • Type: Background suppression
  • Light source: Pulsed point source LED
  • Sensing distance Tw: 30 mm ±2 mm
  • Alignment / soiled lens indicator: Flashing light indicator
  • Light indicator: LED yellow
  • Wave length: 660 nm
  • Beam diameter: 2 mm
  • Voltage supply range +Vs: 11 - 30 VDC
  • Current consumption max. (no load): 30 mA
  • Current consumption typ.: 20 mA
  • Voltage drop Vd: < 2 VDC
  • Output function: Light operate
  • Output circuit: Push-pull
  • Output current: < 50 mA
  • Width / diameter: 4 mm
  • Height / length: 44.8 mm
  • Depth: 6.2 mm
  • Type: Rectangular
  • Housing material: Plastic (ASA)
  • Front (optics): PMMA
  • Connection types: Cable 3 pin, 2 m
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart
Available Now!

Baumer

FHDK 04G6101/KS35A

Subminiature Diffuse Sensor with Background Suppression (BGS), Pulsed Point Source LED, 30mm Tw Range, 11-30VDC, Light Operate Push-Pull, 50mA, 200mm Flylead Connector M8 4-Pin, 44.8 x 4 x 6.2mm (HWD), ASA Housing, PMMA Optics, -10 to +50C, IP65

$334.00

Baumer

FHDK 04G6112

Subminiature Diffuse Sensor with Background Suppression (BGS), Pulsed Point Source LED, 50mm Tw Range, 11-30VDC, Dark Operate, Push-Pull, <50mA, 2m 3-Pin Cable, 44.8 x 4 x 6.2mm (HWD), Plastic (ASA) Housing, PMMA Front (Optics), -10 to +50°C, IP65

$349.00

Baumer

FHDK 10G5120

Miniature Diffuse Sensor, Background Suppression (BGS), Pulsed Red LED, 30mm ±2mm Range Tw, 10-30VDC, Light/Dark Operate, Push-Pull, <50mA, 2m 4-Pin Cable, 27 x 10.4 x 14.7mm (HWD), Plastic (ASA) Housing, PMMA Optics, -25 to +65°C, IP65

$344.00

Baumer

FHDK 10P5150

Miniature Diffuse Sensor, Background Suppression, Pulsed Red LED, 20-80mm Range Tw, Mech. 5-Turn Adj., 10-30VDC, Light/Dark Operate, PNP, <100mA, 2m 4-Pin Cable, 27 x 10.4 x 14mm (HWD), Plastic (ASA) Housing, PMMA Optics, -25 to +65°C, IP65

$439.00

Baumer

FHDK 14P6901

Diffuse Sensor, Background Suppression (BGS), Pulsed Red LED, 40-200mm Range Tw, Teach-In Sensing Adj., 10-30VDC, Light/Dark Operate, PNP, <100mA, 2m 4-Pin Cable, 43 x 14.8 x 32.7mm HWD, Plastic Housing, PMMA Optics, -25 to +65°C, IP67

$429.00

Baumer

FHDK 07N6901

Subminiature Diffuse Sensor, Background Suppression (BGS), Pulsed Red LED, 10-60mm Tw Sensing Dist., 10-30VDC, Light/Dark Operate, NPN, <100mA, 2m Cable Bottom Side, 16.2 x 8 x 10.8mm (HWD), Plastic Housing, PMMA Optics, -20 to +50°C, IP65

$364.00

Baumer

FHDK 10N5150

Miniature Diffuse Sensor, Background Suppression, Pulsed Red LED, 20-80mm Range Tw, Mech. 5-Turn Adj., 10-30VDC, Light/Dark Operate, NPN, <100mA, 2m 4-Pin Cable, 27 x 10.4 x 14mm (HWD), Plastic (ASA) Housing, PMMA Optics, -25 to +65°C, IP65

$439.00

Baumer

FHDK 10P5101

Miniature Diffuse Sensor, Background Suppression, Pulsed Red LED, 20-120mm Range Tw, Mech. 5-Turn Adj., 10-30VDC, Light/Dark Operate, PNP, <100mA, 2m 4-Pin Cable, 27 x 10.4 x 14mm (HWD), Plastic ASA Housing, PMMA Optics, -25 to +65°C, IP65

$379.00

Baumer

FHDK 14P5101

Diffuse Sensor, Background Suppression (BGS), Pulsed Red LED, 20-350mm Range Tw, Mechanical 10-Turn Adj., 10-30VDC, Light/Dark Operate, PNP, <100mA, 2m 4-Pin Cable, 43 x 14.8 x 32.7mm (HWD), Plastic Housing, PMMA Optics, -25 to +65°C, IP67

$319.00
