DL-S100TC
$146.59

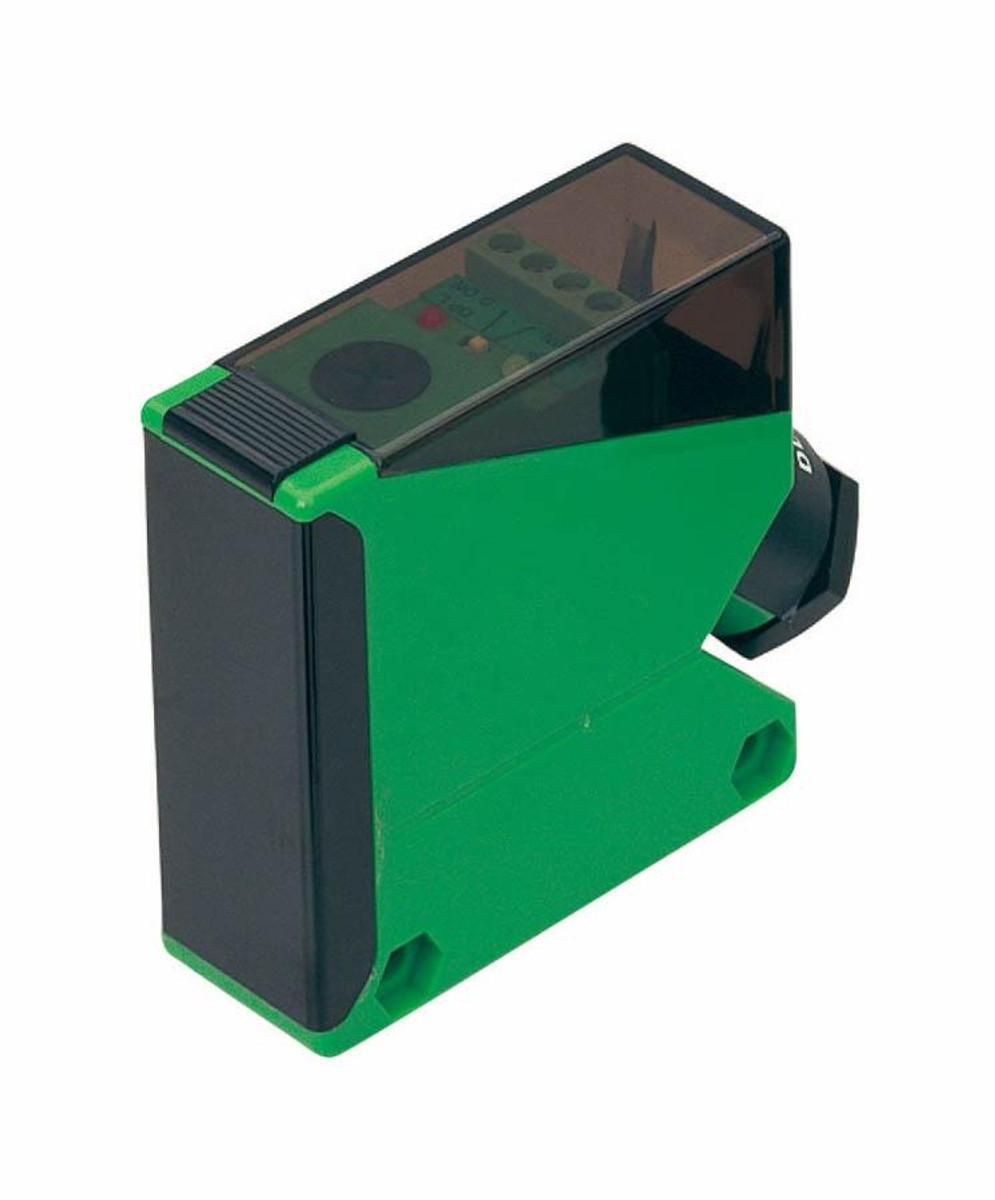

Photoelectric Sensor, Background Suppression, NPN/PNP, Red LED, Terminal Block, Long Distance
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric Sensor, Background Suppression, NPN/PNP, Red LED, Terminal Block, Long Distance
Features Include:
- Long distance type 1m or 2m
- Terminal board connection ensures open space at writing
- Detection Distance: 0.2-2m
- Detection Method: Limited range reflective
- Power Supply: 12 - 24V DC ±10 / Ripple 10% or less
- Current Consumption: 30 mA or less
- Operation Mode: Light ON/Dark ON selectable (with switch)
- Response Time: 10ms or less
- Hysteresis: 10% of detecting distance or less
- Light Source (light wavelength): Infrared LED (880nm)
- Light Receiving Element: 2 segment photodiode
- Material: Body: polycarbonate / Front, terminal cover: acrylic
- Volume: NEAR/FAR: Optical distance adjustment
- Connection: Terminal block
Indicator:
- OP.L: operation indicator (red LED)
- UP: stability indicator (green LED)
Switch:
- Light ON/Dark ON selector switch
- L.ON: Light ON | D.ON: Dark ON
Output Mode:
- NPN/PNP open collector dual outputs
- Rating: current 100 mA (30 VDC) or less *2
Environmental Factors:
- Ambient Light: 10,000 lx or less
- Ambient Temperature: -25 - +55°C (non-freezing)
- Ambient Humidity: 35 - 85%RH (non-condensing)
- Vibration: 10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
- Shock: 500 m/s2 / 3 times each in 3 directions
- Dielectric: 1,000 VAC for 1 minute
- Insulation Resistance: 500 VDC, 20 MΩor higher
