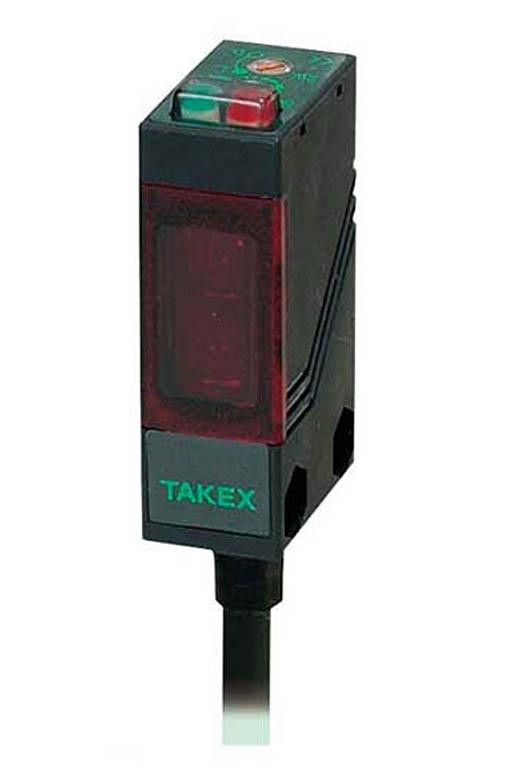

GMR2RPNN-J

Features Include:

• Completely filled with resin to be IP67 compliant
• Improved water resistance and intensity suitable for conveyor lines
• The operation mode can be selected by a switch
• Sensitivity adjustment for fine detection
• Globally compatible PNP types also conveniently provided with stability output
• Optional rigid protective cover (mounting bracket) available
• Detection Method: Polarized retroreflective
• Detection Distance: 0.03 - 1.5 m
• Detection Object: Glossy objects including mirror-like materials and stainless-steel plates or opaque objects
• Power Supply: 12 - 24V DC ±10% / Ripple 10% or less (* 5VDC model)
• Current Consumption: 35mA or less
• Operation Mode: Light-ON / Dark-ON selectable (with switch)
• Mutual interference prevention function: Provided (up to 2 sensors)
• Response Time: 0.5ms or less
• Operating Angle: 30° (at reflector)
• Light source (light wavelength): Red LED (700nm)

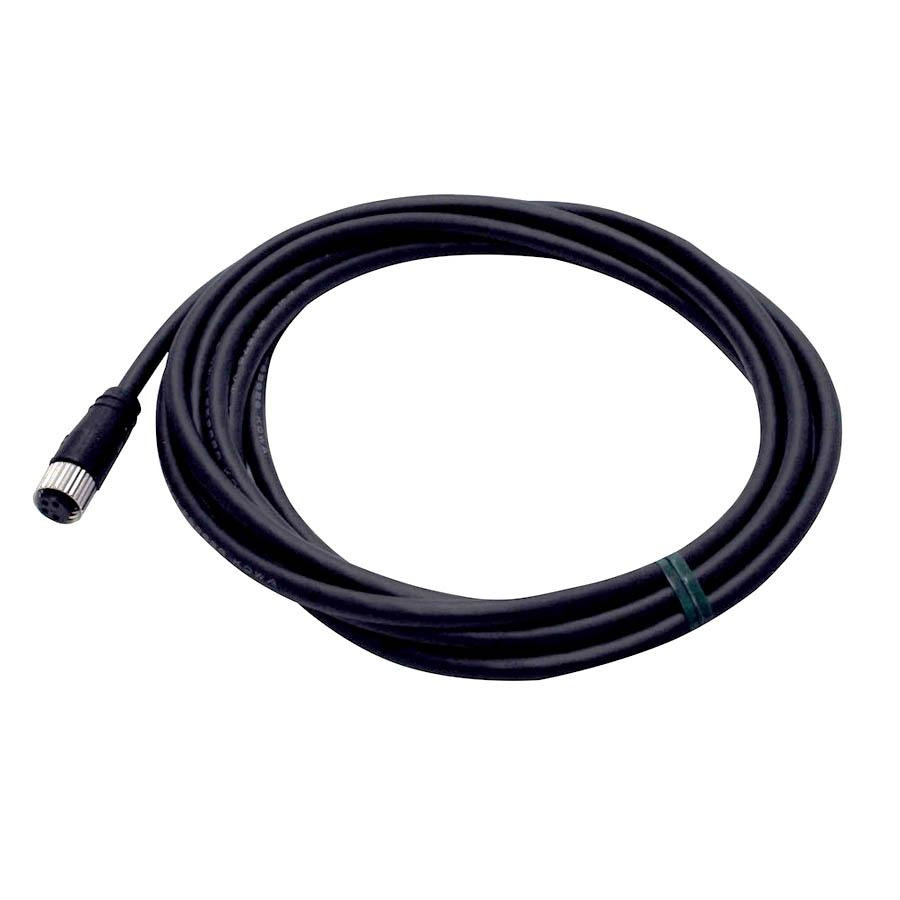

• Connection: Connector type
• Volume (VR): SENS: sensitivity adjustment (on receiver for through-beam type)
• Switch (SW): Light-ON / Dark-ON selector switch
• Anti Interference feature: Available (up to two units)
• Material: Case: Polyarylate, Lens: Acrylic
• Weight: approx. 80g

Output Mode:

• Control output: PNP open collector output Rating: source current 100mA (30 VDC) or less
• Residual voltage: 2 V or less
• Stability output: NPN open collector output Rating: sink current 50mA (30 VDC) or less
• Residual voltage: 1 V or less

Indicator:

• Red LED: Operation indicator
• Green LED: Stability Indicator

Environmental Specifications:

• Ambient Light: 5,000 lx or more
• Ambient Temperature:-25 - +55C (non-freezing)
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
• Shock: 500 m/s2 / 3 times each in 3 directions
• Dielectric withstanding: 1,000 VAC for 1 minute
• Insulation resistance: 500 VDC, 20 MΩ or higher
