GMR2RSPN-N
Alt: Middle-G Series
$102.89

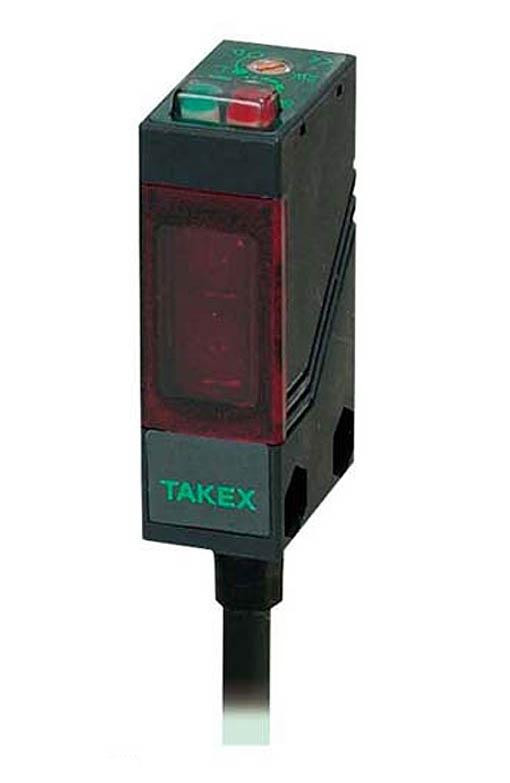

Photoelectric Sensor, Amplifier, Diffuse, PNP, Red LED, IP67, Compact, Cable, 1500mm Range
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric Sensor, Amplifier, Diffuse, PNP, Red LED, IP67, Compact, Cable, 1500mm Range

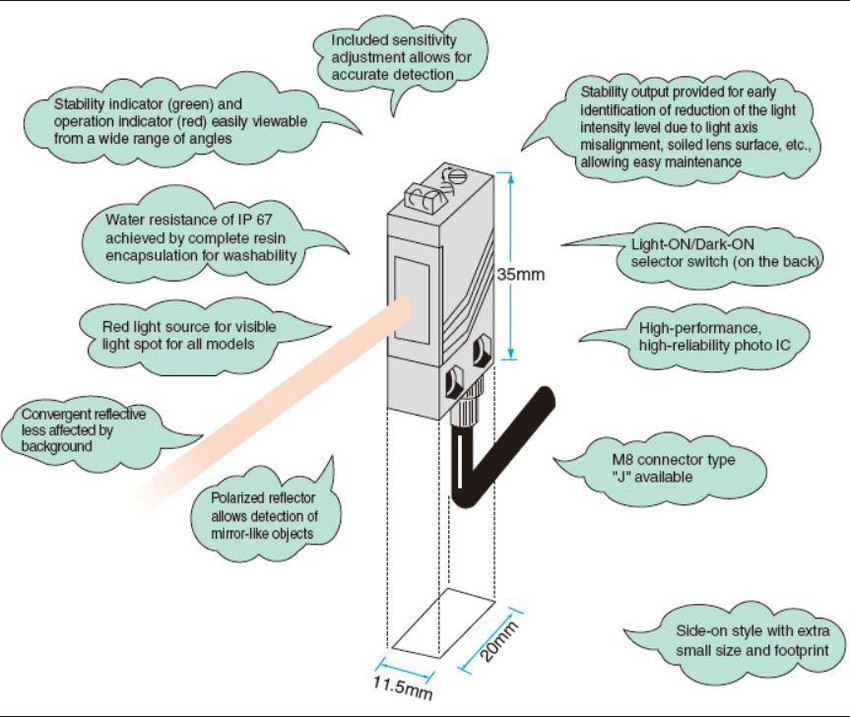

Features Include:
- Completely filled with resin to be IP67 compliant
- Improved water resistance and intensity suitable for conveyor lines
- The operation mode can be selected by a switch
- Sensitivity adjustment for fine detection
- Globally compatible PNP types also conveniently provided with stability output
- Optional rigid protective cover (mounting bracket) available
- Detection Method: Polarized retroreflective
- Detection Distance: 0.03 - 1.5 m
- Detection Object: Glossy objects including mirror-like materials and stainless-steel plates or opaque objects
- Power Supply: 12 - 24V DC ±10% / Ripple 10% or less (* 5VDC model)
- Current Consumption: 35mA or less
- Operation Mode: Light-ON / Dark-ON selectable (with switch)
- Mutual interference prevention function: Provided (up to 2 sensors)
- Response Time: 0.5ms or less
- Light source (light wavelength): Red LED (700nm)
- Connection: Connector type
- Volume (VR): SENS: sensitivity adjustment (on receiver for through-beam type)
- Switch (SW): Light-ON / Dark-ON selector switch
- Anti Interference feature: Available (up to two units)
- Material: Case: Polyarylate, Lens: Acrylic
- Weight: approx. 80g
Output Mode:
- Control output: PNP open collector output Rating: source current 100mA (30 VDC) or less
- Residual voltage: 2 V or less
- Stability output: NPN open collector output Rating: sink current 50mA (30 VDC) or less
- Residual voltage: 1 V or less
Indicator:
- Red LED: Operation indicator
- Green LED: Stability Indicator
Environmental Specifications:
- Ambient Light: 5,000 lx or more
- Ambient Temperature:-25 - +55C (non-freezing)
- Ambient Humidity: 35 - 85%RH (non-condensing)
- Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
- Shock: 500 m/s2 / 3 times each in 3 directions
- Dielectric withstanding: 1,000 VAC for 1 minute
- Insulation resistance: 500 VDC, 20 MΩ or higher
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Takex
K-7
Reflector, 60 x 40mm, Acrylic Mirror, Heat Resistant ABS Base, Secured with M3 Screws, for Polarized Retroreflective Models, IP67
$7.18
$8.30
Takex
FBC-4R2L
Fiber Optic Cable With M8 Connector, Angled With 4 Cores Cable, 2m (Transmitter/Receiver)
$30.42
Takex
FBC-4R2S
Fiber Optic Cable With M8 Connector, Straight with 4 Cores Cable, 2m (Transmitter/Receiver)
$27.66
