Baumer
ESW 31AH0200
Connecting Cable, 2m 4 Pin PUR Halogen Free, for M8 Female Angled Connector, Free Cable End, Suitable for ATEX Flexible Cable Carriers, Unshielded, IP65/67/68
$20.00
Available Now!
Available Now!
(1 in stock)

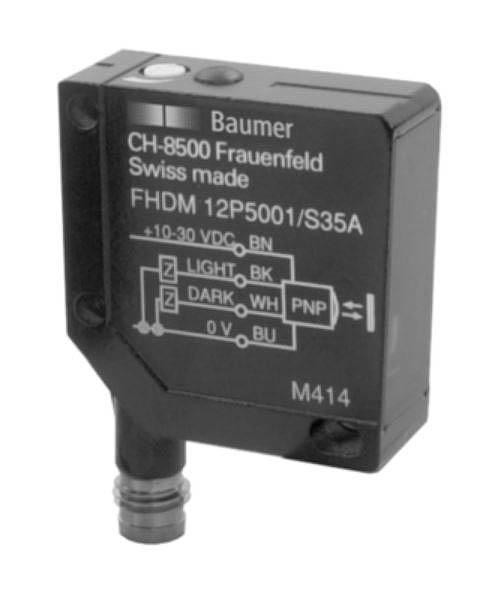

FHDM 12P5001/S35A
Alt: 10234167
$404.00
Photoelectric Sensor, PNP, M8 4-pinIP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric Sensor
Features Include:
- Type: Background suppression
- Light source: Pulsed red LED
- Sensing distance Tw: 15 - 300 mm
- Sensing range Tb (at Tw max.): 15 - 300 mm
- Sensing range Tb (at Tw min.): 5 - 15 mm
- Light indicator: LED yellow
- Sensing distance adjustment: Mechanical, 5 turn
- Wave length: 660 nm
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 35 mA
- Current consumption typ.: 25 mA
- Voltage drop Vd: < 1.8 VDC
- Output function: Light/Dark operate
- Output circuit: PNP
- Output current: < 100 mA
- Width / diameter: 12.4 mm
- Height / length: 35 mm
- Depth: 35 mm
- Type: Rectangular
- Housing material: Die-cast zinc
- Front (optics): PMMA
- Connection types: Connector M8 4 pin
Technical Information:
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$20.82
Baumer
ESG 32AH0200
Cable, 2m, M8 4-pin, Straight, Unshielded, Female, Free Cable End, PUR Halogen-Free
$20.00
Baumer
ESG 32AH0500
Cable, 5m, M8 4-pin, Straight, Unshielded, Female, Free Cable End, PUR Halogen-Free
$18.09
Baumer
ESG 32AH1000
Cable, 10m, M8 4-pin, Straight, Unshielded, Female, Self-Locking Cap Nut, PUR Halogen-Free
$31.35
