FHDM 12P5001
Alt: 10234166
$419.00

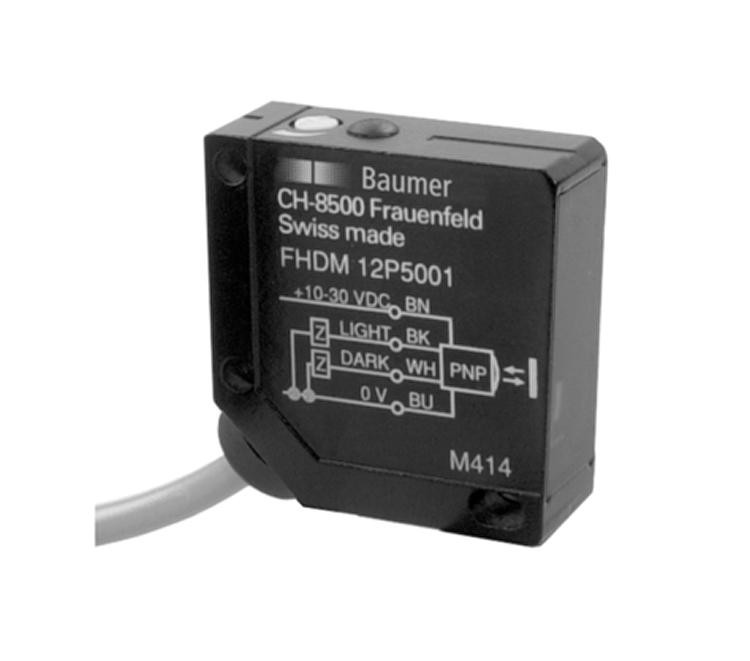

Photoelectric Sensor w/ 2M Cable
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric Sensor
Features Include:
- Type: Background suppression
- Light source: Pulsed red LED
- Sensing distance Tw: 15 - 300 mm
- Sensing range Tb (at Tw max.): 15 - 300 mm
- Sensing range Tb (at Tw min.): 5 - 15 mm
- Light indicator: LED yellow
- Sensing distance adjustment: Mechanical, 5 turn
- Wave length: 660 nm
- Voltage supply range +Vs: 10 - 30 VDC
- Current consumption max. (no load): 35 mA
- Current consumption typ.: 25 mA
- Voltage drop Vd: < 1.8 VDC
- Output function: Light/Dark operate
- Output circuit: PNP
- Output current: < 100 mA
- Width / diameter: 12.4 mm
- Height / length: 35 mm
- Depth: 35 mm
- Type: Rectangular
- Housing material: Die-cast zinc
- Front (optics): PMMA
- Connection types: Cable 4 pin, 2 m
