ER1830PPAS-1
Alt: Manufacturer Minimum Order 5 Pieces, Price per Piece
$142.40

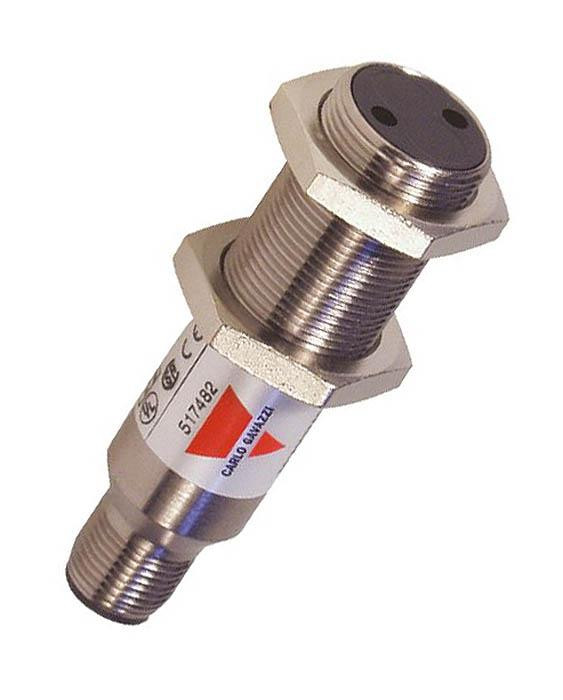

Photoelectric Retroreflective Sensor, M18, Modulated, Infrared Light 880nm, 10-40VDC, 3m Range, PNP, NO/NC, Light and Dark Switching, M12 Plug
- Minimum Purchase:
- 5 units
Description
Series Features Include:
- Range: 3 mm
- Rated operating dist. (Sn): Up to 3 m Ref. reflector type ER4 ∅ 84 mm
- Sensitivity: Adjustable 270° single turn pot. meter
- Modulated infrared light
- Supply voltage: 10 - 40 VDC
- Light source: GaAlAs LED, 880 nm
- Light type: Infrared, modulated
- Output: 200 mA NPN or PNP
- Make and break switching function, LED indication
- Protection: Reverse polarity, short circuit, transients
- High immunity to ambient light
- Output function Complementary: (NO+NC)
- Sensing mode: Light-/dark switching
Housing material
- Body: Nickel plated brass
- Front: Luran®, black
- Cable end: Polyester, black
- Nuts: Nickel plated brass
Technical Information:
