BH4M-PDT

BH4M-PDT

Alt: BH Series

$84.00

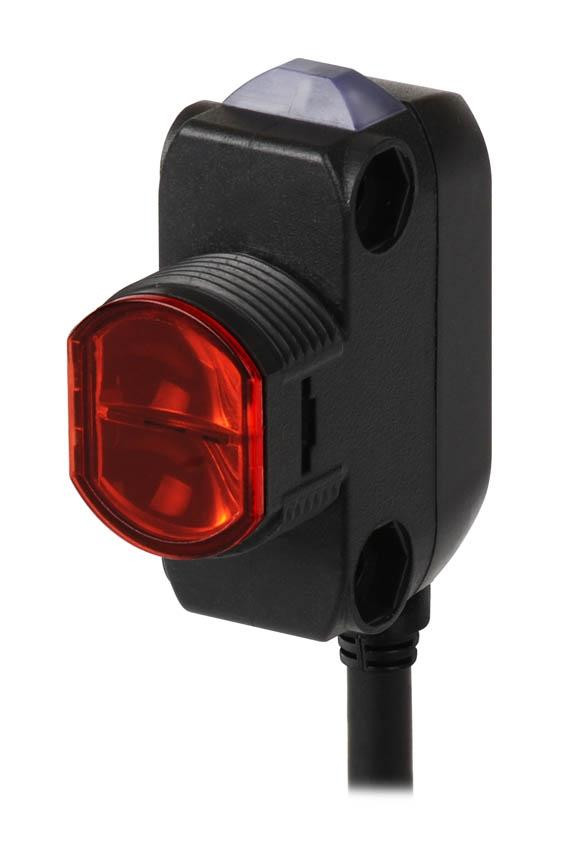

Photoelectric, Retroreflective, 4m Sensing, 12-24V, NPN/PNP, IP67, Front or Side Mount, Compact

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Front mount with M18 nut or side mount with M3 screws,
Description

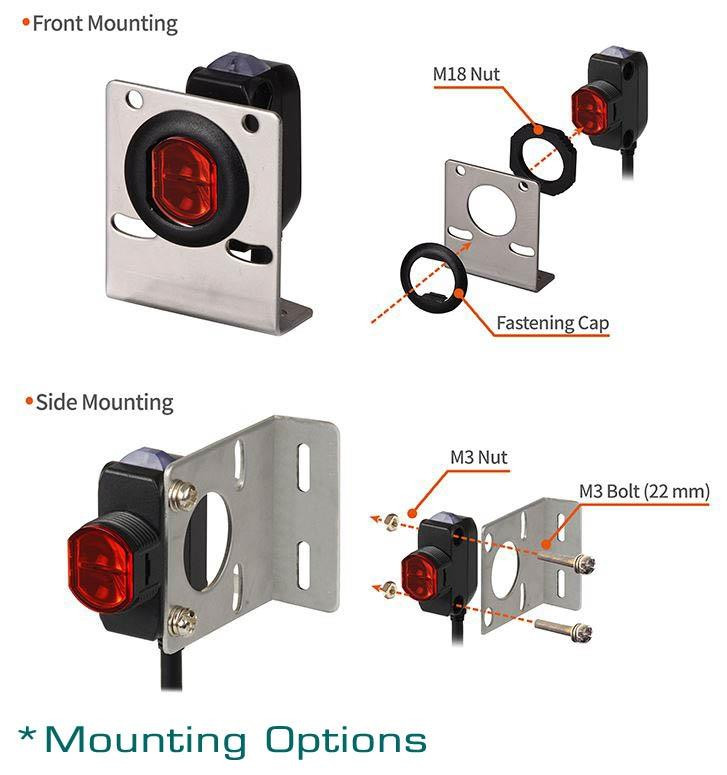

The Autonics BH series offers two mounting styles for each sensor; front mounting using M18 nut and fastening cap or side mounting using M3 bolt screw and nuts!

This series can also product individual or simultaneous NPN and PNP open collector outputs with a simple wire configuration.

These sensors are IP67 which can be used in wet or dusty environments.

Marshall Wolf Automation is your authorized Autonics distributor!

Features Include:

  • Front mounting (M18 nut) or side mounting (M3 screws)
  • Simultaneous NPN/PNP open collector output
  • Compact size: W 14 mm x H 34.5 mm x L 28 mm
  • Mirror Surface Rejection (MSR) function allows stable detection of highly reflective targets (retroreflective type only)
  • Sensitivity adjuster included
  • Light ON / Dark ON operation mode switch
  • Operation indicator (red LED) and stability indicator (green LED)
  • Built-in reverse polarity protection circuit and output overcurrent (short-circuit) protection circuit
  • Mutual interference prevention function (except through-beam type)
  • IP67 protection structure (IEC standard)

Sensing Distances:

Through-beam Type: 20 m

<Retroreflective Type: 4 m

Diffuse Reflective Type: 1 m, 300 mm
