50133739
Alt: PRK3CL1.A3/4P-M8, Non-Cancellable / No Returns
$332.00

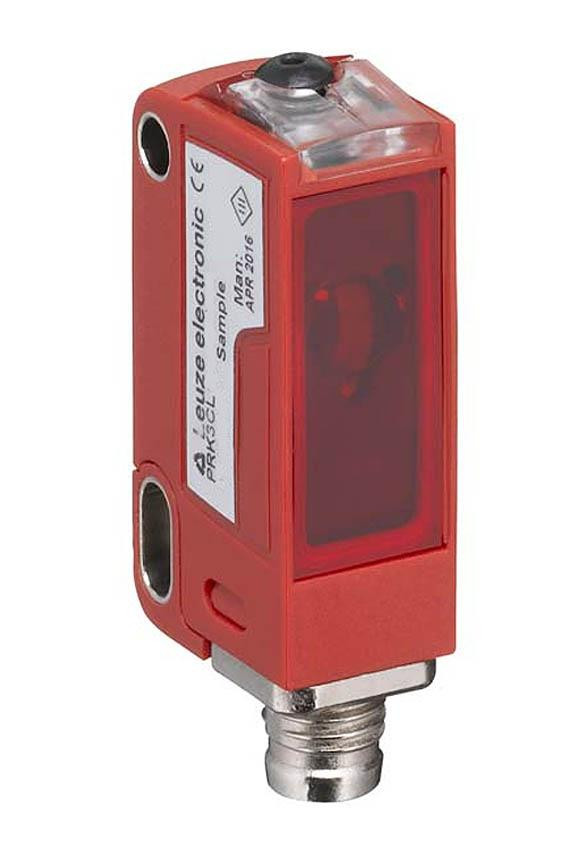

Polarized Retro-Reflective Photoelectric Sensor, 0-3m, Laser, Red, Connector, M8, Metal, 4-Pin, NCNR
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric, Polarized retro-reflective 0...3 m, Laser, Red, Connector, M8, Metal, 4 -pin
Specifications
Alternate Part Number
PRK3CL1.A3/4P-M8, Non-Cancellable / No Returns
Connection
See Spec
Light Source
Laser
NPN or PNP
See Spec or N/A
Light On/Dark On
See Spec or N/A
Sensing Method
Retroreflective
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67, IP69K
Series
PRK Series
Size
8mm
Warranty
2 Years
Weight
0.1
Features Include:
- Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
- Residual Ripple: 0 - 15 %, From UB
- Switching Frequency: 3,000 Hz
- Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
- Housing Material: Plastic, PC-ABS
- Lens Cover Material: Plastic/PMMA
Connection:
- Type of Connection: Connector
- Thread Size: M8
- Material: Metal
- Number of Pins: 4-pin
Optical Data:
- Operating Range: 0 - 2 m, With reflector MTKS 50x50.1
- Operating Range Limit: 0 - 3 m, With reflector MTKS 50x50.1
- Light Source: Laser, Red
- Laser Class: 1, IEC/EN 60825-1:2007
- Light-spot size [at sensor distance]: 1 mm [3,000 mm]
