50133691
Alt: PRK3CL1.T3/4T-200-M12
$356.25
Polarized Retro-Reflective Photoelectric Sensor, 0-0.5m, Laser, Red, PNP, Cable, M12, Metal, 4-Pin
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric, Polarized retro-reflective 0..0.5m, Laser, Red, PNP, Cable, M12, Metal, 4pin
Features Include:
- Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
- Residual Ripple: 0 - 15 %, From UB
- Switching Frequency: 3,000 Hz

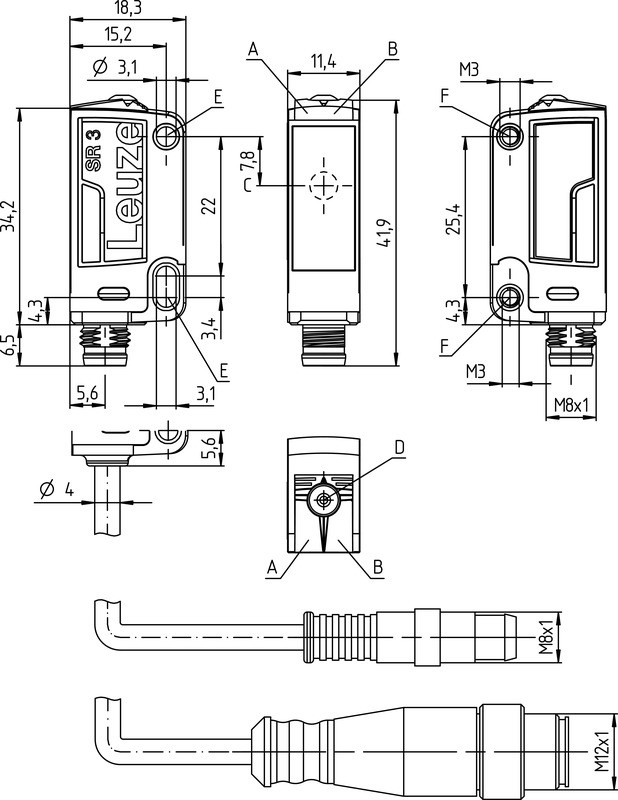

- Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
- Housing Material: Plastic, PC-ABS
- Lens Cover Material: Plastic/PMMA
Connection:
- Type of Connection: Cable with connector
- Thread Size: M12
- Material: Metal
- Number of Pins: 4-pin
Optical Data:
- Operating Range: 0 - 0.4 m
- Operating Range Limit: 0 - 0.5 m
- Light Source: Laser, Red
- Laser class: 1, IEC/EN 60825-1:2007
- Light-spot size [at sensor distance]: 1 mm [500 mm]
