50133645

50133645

Alt: PRK3C.T3/4T, Non-Cancellable / No Returns

$213.56

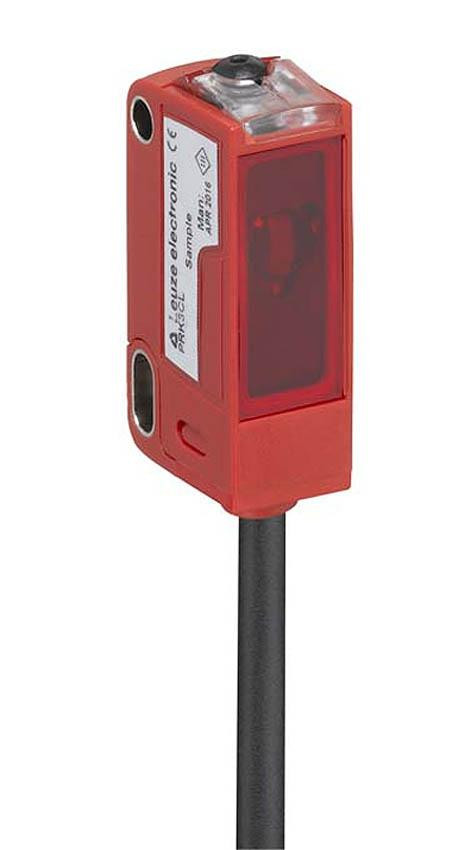

Polarized Retro-Reflective Photoelectric Sensor, 0-3.6m, LED, Red, PNP, Cable, 2,000mm, 4-Wire, NCNR

Weight:
0.25 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Photoelectric, Polarized retro-reflective 0...3.6 m, LED, Red, PNP, Cable, 2,000 mm, 4 -wire

Features Include:

  • Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
  • Residual Ripple: 0 - 15 %, From UB
  • Switching Frequency: 1,500 Hz

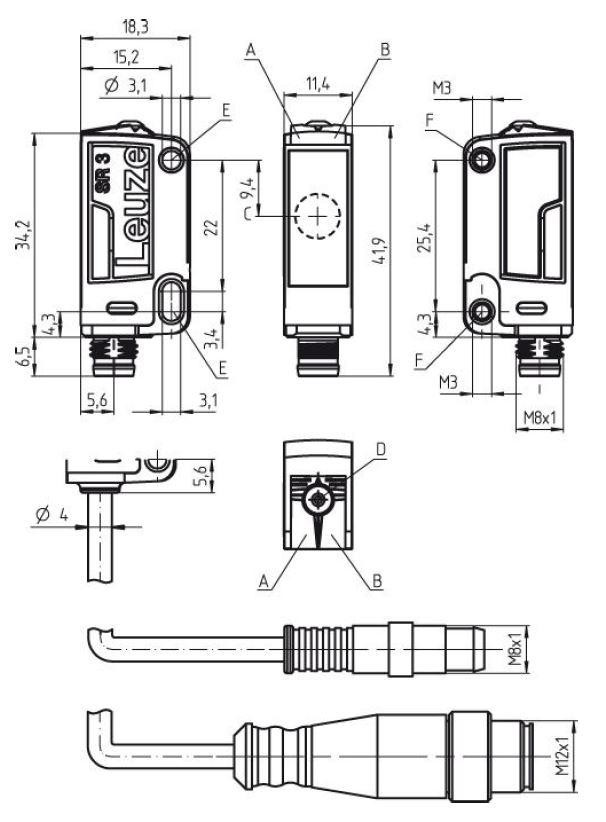

  • Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
  • Housing Material: Plastic, PC-ABS
  • Lens Cover Material: Plastic/PMMA

Connection:

  • Type of Connection: Cable
  • Number of Wire: 4-wire

Optical Data:

  • Operating Range: 0 - 2 m, With reflector MTKS 50x50.1
  • Operating Range Limit: 0 - 3 m, With reflector MTKS 50x50.1
  • Light Source: Laser, Red
  • Laser class: 1, IEC/EN 60825-1:2007
  • Light-spot size [at sensor distance]: 1 mm [3,000 mm]
