50129404
Alt: PRK3C.A3/4T, Non-Cancellable / No Returns
$198.00

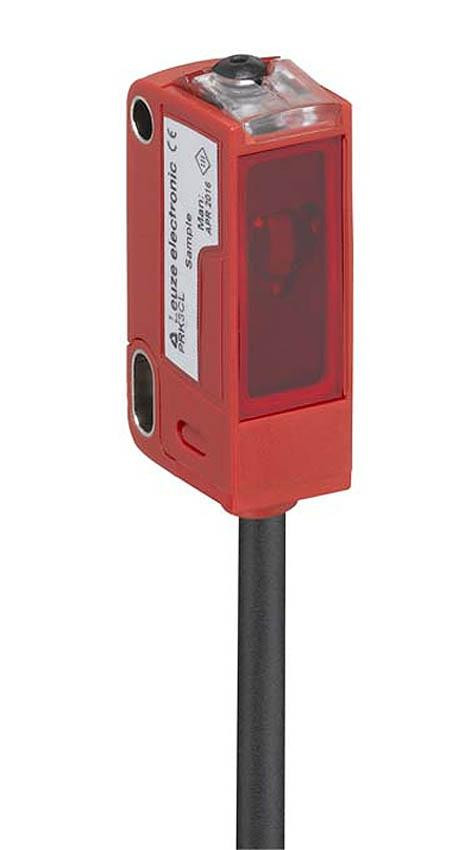

Polarized Retro-Reflective Photoelectric Sensor, 0-5 m, LED, Red, PNP, Cable, 2,000mm, 4-Wire, NCNR
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Photoelectric, Polarized retro-reflective 0...5 m, LED, Red, PNP, Cable, 2,000 mm, 4 -wire
Specifications
Alternate Part Number
PRK3C.A3/4T, Non-Cancellable / No Returns
Connection
w/Cable
NPN or PNP
PNP (Source)
Light On/Dark On
See Spec or N/A
Sensing Method
Retroreflective
Type of Photoelectric
General Purpose Photoelectric
All - Specific Ratings
IP67, IP69K
Series
PRK Series
Size
See Spec
Warranty
2 Years
Weight
0.25
Features Include:
- Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
- Residual Ripple: 0 - 15 %, From UB
- Switching Frequency: 1,500 Hz

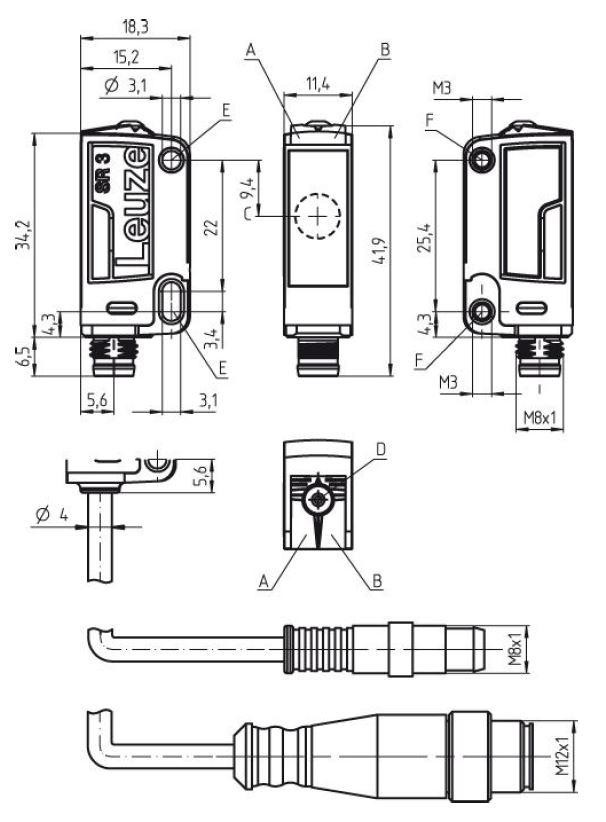

- Dimensions (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
- Housing Material: Plastic, PC-ABS
- Lens Cover Material: Plastic/PMMA
Connection:
- Type of Connection: Cable
- Number of Conductors: 4-wire
Optical Data:
- Operating Range: 0 - 4 m, With reflector TK(S) 100x100
- Operating Range Limit: 0 - 5 m, With reflector TK(S) 100x100
- Light Source: LED, Red
