50127028
Leuze

50127028

Alt: PRK46C.D1/PX-M12, Non-Cancellable / No Returns

$203.00

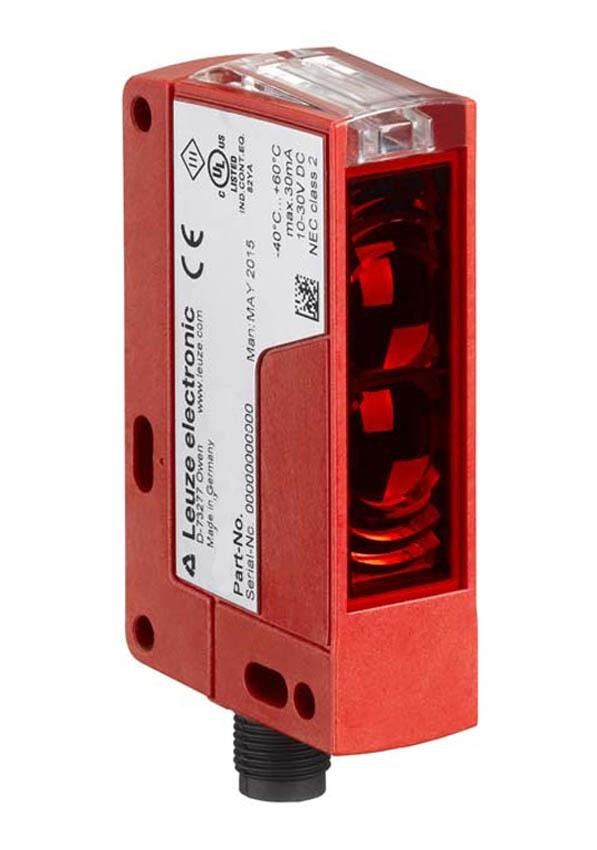

Polarized Retro-Reflective Photoelectric Sensor, Red LED, 0.1-20m Range, M12, 4-Pin, 1 Output, NCNR

Weight:
0.25 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Photoelectric, Polarized retro-reflect, Red LED, 0.1..20m Range, M12, Plastic, 4 -pin, 1 Output
Specifications
Alternate Part Number PRK46C.D1/PX-M12, Non-Cancellable / No Returns
Connection See Spec
NPN or PNP PNP (Source)
Light On/Dark On See Spec or N/A
Sensing Method Retroreflective
Type of Photoelectric General Purpose Photoelectric
All - Specific Ratings IP67, IP69K
Series PRK Series
Size 12mm
Warranty 2 Years
Weight 0.25

Features Include:

  • Supply Voltage: 10 - 30 V, DC, Incl. residual ripple
  • Residual Ripple: 0 - 15 %, From UB
  • Switching Frequency: 500 Hz
  • Dimensions (W x H x L): 20.5 mm x 76.3 mm x 44 mm
  • Housing Material: Plastic, PC-PBT
  • Lens Cover Material: Plastic/PMMA

Connection:

  • Type of Connection: Connector
  • Thread Size: M12
  • Material: Plastic
  • Number of Pins: 4-pin

Optical Data:

  • Operating Range: 0.1 - 16 m, With reflector TK(S) 100x100
  • Operating Range Limit: 0.1 - 20 m, With reflector TK(S) 100x100
  • Light Source: LED, Red
