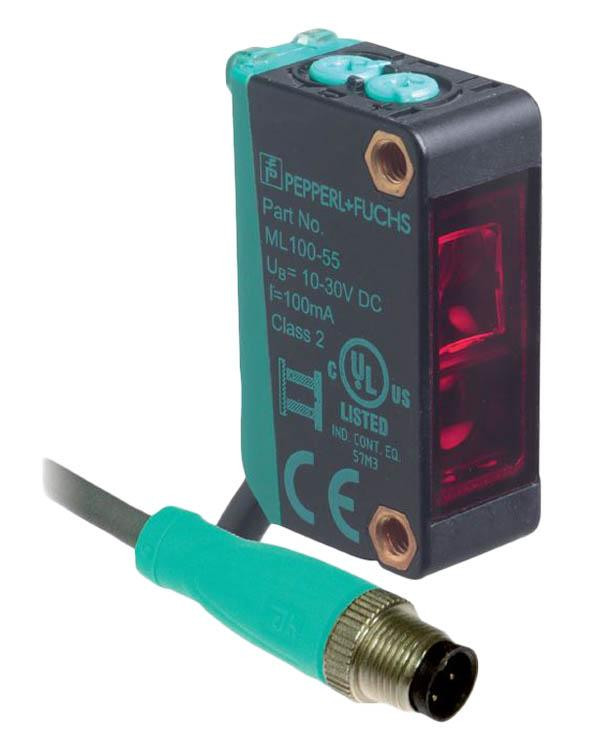

221827

Series Features Include:

• Effective detection range: 0 - 5 m
• Reflector distance: 0.01 - 5 m
• Threshold detection range: 7 m
• Reference target: H50 reflector
• Light source: LED
• Light type: modulated visible red light
• Polarization filter: yes
• Diameter of the light spot: approx. 500 mm at a distance of 7 m
• Angle of divergence: approx. 4 °
• Optical face: frontal
• Operation indicator: LED green: power on
• Function indicator: LED yellow: lights up when receiving the light beam ; flashes when falling short of the stability control; OFF
• when light beam is interrupted
• Operating voltage: 10 - 30 V DC
• Ripple: max. 10 %
• No-load supply current: < 20 mA
• Miniature design
• Easy to use
• Full metal thread mounting
• Clearly visible LEDs for Power ON, switching state and weak signal indication
• Not sensitive to ambient light
