Available Now! VP02E
Available Now! (3 in stock)
Carlo Gavazzi

VP02E

Alt: Minimum Order 1 is Limited to Available Stock Only! Then the Minimum will be 5 Pieces.

$152.80

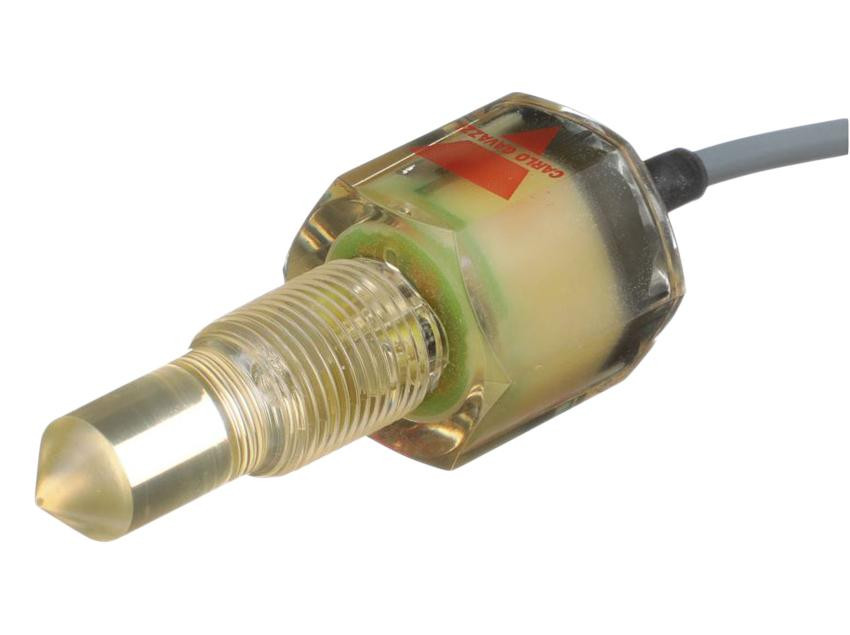

Photoelectric Optical Level Sensor, NPN NO, DC Output, Polysulphone Housing

Weight:
0.25 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.

Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Specifications
Connection w/Cable
Light Source Infrared
NPN or PNP NPN (Sink)
Light On/Dark On Light ON
Sensing Method See Spec or N/A
Type of Photoelectric See Spec or N/A
All - Specific Ratings IP67
Size See Spec
Quantity 3
Warranty 1 Year
Alternate Part Number Minimum Order 1 is Limited to Available Stock Only! Then the Minimum will be 5 Pieces.
Weight 0.25

Series Features Include:

  • Sensor for liquid level detection
  • Built-in amplifier, Ga-As diode
  • Output: Transistor NPN/PNP or SCR, NO or NC
  • High chemical resistance to most acids and bases
  • VP01/03: Output OFF when sensor in liquid
  • VP02/04: Output ON when sensor in liquid
  • No electrical or thermal connection between liquid and electrical circuit
  • DC types: LED-indication for output ON
  • Power supply: DC types: 10 to 40 VDC / AC types: 110 or 230 VAC
  • Housing Material: Polysulphone / Polyamide 12
Downloads
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart
Available Now!

Carlo Gavazzi

VP02EP

Photoelectric Optical Level Sensor with Unmodulated, Infrared Light, Fitted with Built-in Amplifier, 10-40VDC, Transistor PNP NO, 200mA, 2m PVC Cable, Polysulphone Housing and Tip Material, IP67
