183065
Alt: RLK31-54/25/31/115
$141.88
Photoelectric, Light On, Retro-Reflective, 0 to 9000mm, AC/DC, Relay Output, 2m Cable
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
- Effective detection range: 0 - 9000 mm
- Reflector distance: 20 - 9000 m
- Threshold detection range: 12 m
- Reference target: reflector C110-2
- Light type: modulated visible red light
- Polarization filter: yes
- Diameter of the light spot: approx. 200 mm at a distance of 6 m
- Angle of divergence: 3°
- Ambient light limit: 50000 Lux
- Operating voltage: 24 - 240 V AC, 12 - 240 V DC
- Power consumption: ≤ 2 VA
- Switching type: light on
- Signal output: Relay, 1 alternator
- Switching voltage max.: 240 V AC/DC
- Switching current: max. 3 A
- Switching power: DC: max. 150 W AC: max. 750 VA
- Switching frequency: 20 Hz
- Response time: 25 ms

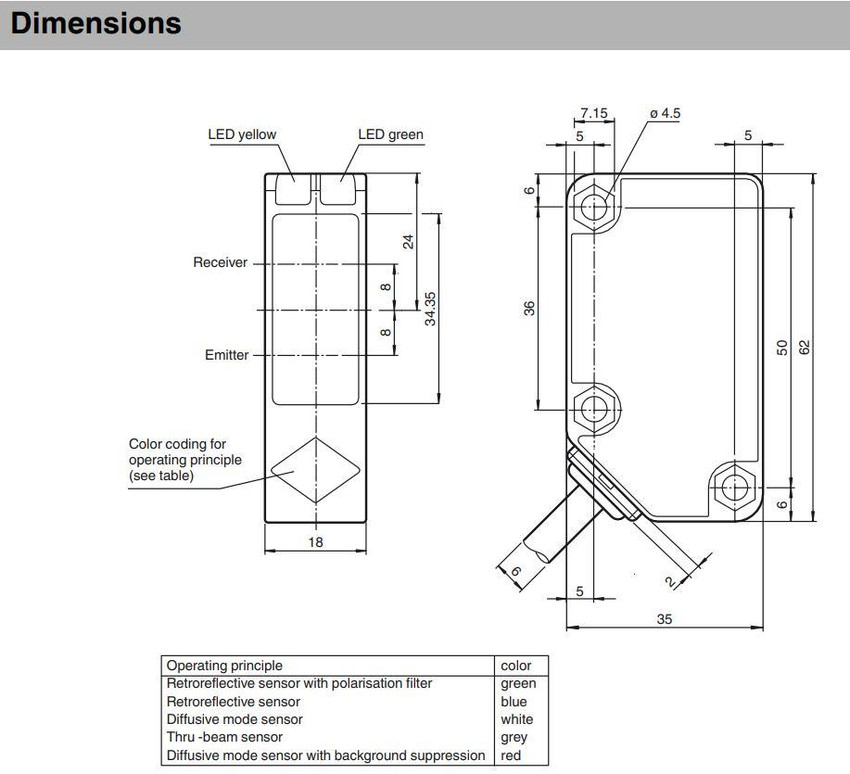

- Housing width: 18 mm
- Housing height: 62 mm
- Housing depth: 35 mm
- Degree of protection: IP67
- Connection: 2 m fixed cable
- Housing: Polycarbonate
- Optical face: PMMA
